15W AC DC open frame switching power supply three output
Descriptions

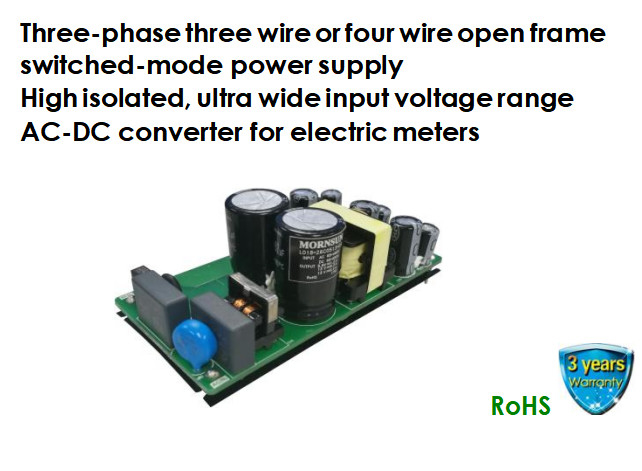

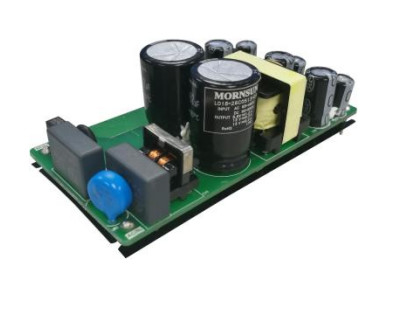

LO18-26C0513-03 Ultra wide input voltage range open frame switched-mode power supply for electric-meter application.This AC-DC Converter is designed for electric-meter application and operates over a very widei nput voltage range:65-460VACor90-650VDC.It means that this converter can operate with any two wires connection from the three-phase three wire or four-wire system.When failures happen in the lines system resulting in input over-voltage,the converter will shut down to protect itself and the terminal devices from damage, improving the reliability of the system.The isolation voltage is 4000VAC between input and output,and two outputs.The product meets IEC/EN61000,so it is a design solution for electric-meter application sourced from a three-phase AC supply with the requirement of high isolation voltage and strict electromagnetic compatibility.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
Features
Specifications
| Selection Guide | ||||||||
Part No. | Output Power | Nominal Output Voltage and Current(Vo/Io) | Efficiency (230VAC, %/Typ.) | Max. Capacitive Load (µF) | ||||
| (Vo1/Io1) | (Vo2/Io2) | (Vo3/Io3) | Vo1 | Vo2 | Vo3 | |||
| LO18-26C0513-03 | 14.52W | 5.6V/1.2A | 13V/0.3A | 13V/0.3A | 80 | 5000 | 1000 | 1000 |
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
Input Voltage Range | AC input | 65 | -- | 460 | VAC |
| DC input | 90 | -- | 650 | VDC | |
| Input Frequency | 47 | -- | 440 | Hz | |
| Input Current | 230VAC input, Io=100% | -- | 0.15 | 0.25 |
A |
Inrush Current | 115VAC | -- | 25 | -- | |
| 230VAC | -- | 40 | -- | ||
| Input Over-voltage Protection | AC input | 495 | 530 | 565 | VAC |
| Leakage current | Vin=220VAC/50HZ | -- | 0.3 | -- | mA |
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
Output Voltage Accuracy |
Balance load | Primary output (Vo1) | -- | ±2 | -- | % |
| Secondary output (Vo2/ Vo3) | -- | ±10 | -- | |||
Line Regulation |
Full load | Primary output (Vo1) | -- | ±0.5 | -- | |
| Secondary output (Vo2/ Vo3) | -- | ±1.5 | -- | |||
Load Regulation |
10%-100% load | Primary output (Vo1) | -- | ±2 | -- | |
| Secondary output (Vo2/ Vo3) | -- | ±5 | -- | |||
Ripple & Noise* | 20MHz bandwidth (peak-peak value) | Primary output (Vo1) | -- | -- | 100 |
mV |
| Secondary output (Vo2/ Vo3) | -- | -- | 200 | |||
Temperature Coefficient | Primary output (Vo1) | -- | ±0.02 | -- |
%/℃ | |
| Secondary output (Vo2/ Vo3) | -- | ±0.06 | -- | |||
| Physical Specifications | |
| Dimension | 100.00 x 50.00 x 34.00 mm |
| Weight | 90g (Typ.) |
| Cooling Method | Free convection |
