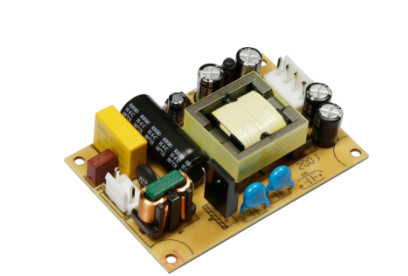

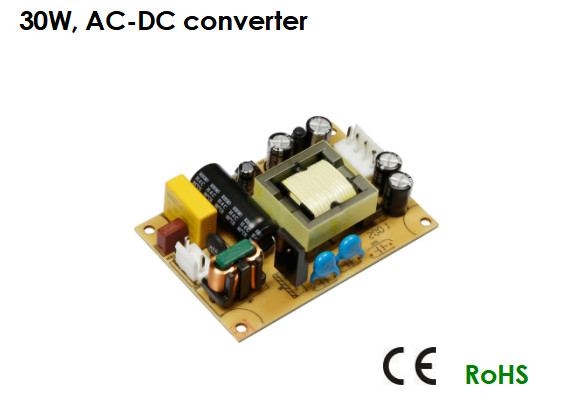

30W AC DC Open Frame Switching Power Supply Dual Output
Descriptions
LO30-10A/Dxx series is one of Mornsun’s compact size power converter.It features universal AC input and at the same time accepts DC input voltage,low power consumption,high efficiency,high reliability,reinforced isolation.It offers good EMC performance compliant to IEC/EN61000-4,CISPR32/EN55032,UL/EN60335 and meets UL/EN/IEC62368 standards.The converters are widely used in industrial,office and civil applications.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
Features
Specifications
| Selection Guide | |||||||
Certification |
Part No. | Output Power | Nominal Output Voltage and Current | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF) Max. | ||
| (Vo1/Io1) | (Vo2/Io2) | Vo1 | Vo2 | ||||
CE | LO30-10D0505-30 | 30W | 5V/3000mA | 5V/3000mA | 79 | 10000 | 10000 |
| LO30-10D0512-15 | 5V/2520mA | 12V/1440mA | 81 | 10000 | 5200 | ||
| LO30-10D0524-10 | 5V/1440mA | 24V/960mA | 84 | 12000 | 800 | ||
| LO30-10A12 | +12V/1250mA | -12V/1250mA | 82 | 5200 | 5200 | ||
| LO30-10A15 | +15V/1000mA | -15V/1000mA | 82 | 4500 | 4500 | ||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 100 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
Input Current | 115VAC | -- | -- | 750 |
mA |
| 230VAC | -- | -- | 450 | ||
Inrush Current | 115VAC | -- | 20 | -- | A |
| 230VAC | -- | 30 | -- | ||
| Leakage Current | 240VAC/50Hz | 0.25mA Max. | |||
| Hot Plug | Unavailable | ||||
| Output Specifications | |||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | ||
Output Voltage Accuracy | Vo1 | -- | ±2 | -- | % | ||
| Vo2 (A model) | -- | ±4 | -- | ||||
| Vo2 (D model) | -- | ±6 | -- | ||||
Line Regulation |
Vo1 | LO30-10D0505-30 | -- | ±1 | -- | ||
| others | -- | ±0.5 | -- | ||||
Vo2 | LO30-10D0505-30 | -- | ±1 | -- | |||
| others | -- | ±1 | -- | ||||
Load Regulation |
Balanced load | A model | -- | ±2 | -- | ||
D mode | Vo1 | -- | ±1 | -- | |||
| Vo2 | -- | ±2 | -- | ||||
| Mechanical Specifications | |
| Dimension | 76.20 x 50.80 x 28.00 mm |
| Weight | 65g (Typ.) |
| Cooling method | Free air convection |
