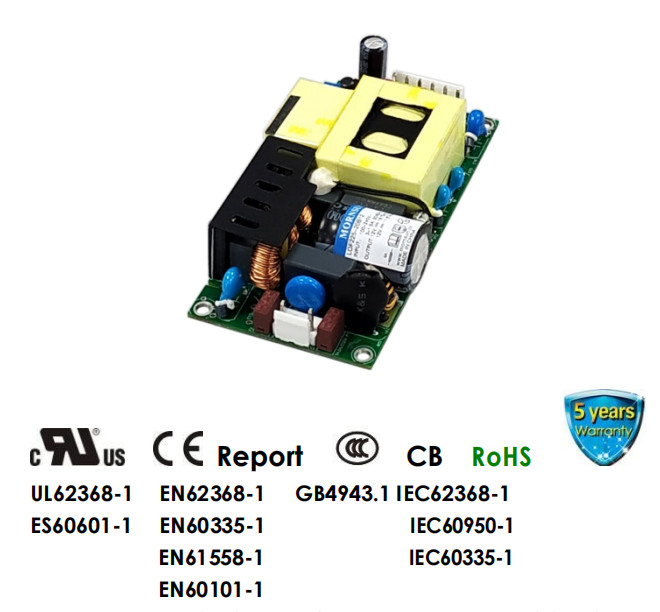

225W 24V AC DC Open Frame Power Supply EN60335 For Street Light Control

225W AC DC Open Frame Switching Power Supply with PFC function single output

Descriptions

LOF225-20Bxx series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients) medical system equipment.It features universal AC input and at the same time accepts DC input voltage,cost-effective,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC and safety performance,which meet IEC/EN/UL62368,GB4943,IEC/EN60335,IEC/EN61558,IEC/EN/ES60601,IEC60950 standards and they are widely used in areas of industrial, LED,street light control,electricity,security,telecommunications,smart home,medical,etc.

Features

• l Input voltage range: 85 - 264VAC/120 - 370VDC
• l Compact size: 4” × 2” × 1”
• l Operating ambient temperature range: -40℃ to +70℃
• l Active PFC
• l High I/O isolation test voltage up to 4000VAC
• l Operating altitude up to 5000m
• l Very low leakage current ＜0.1mA
• l Stand-by power consumption 0.5W Typ.
• l The base plate with conformal coating
• l Output short circuit, over-current, over-voltage, over-temperature protection
• l Suitable for BF application
• l Installing in system of Safety Class I/II is available

​Specifications

Dimensions and Recommended Layout
