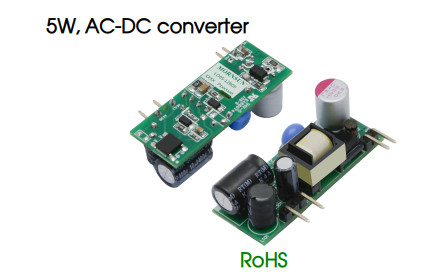

5W AC DC open frame switching power supply
Descriptions
LO05-12Bxx series is one of Mornsun’s compact size power converter.It features universal AC input and at the same time accepts DC input voltage,high efficiency,high reliability,reinforced isolation.
It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards.
The converters are widely used in industrial,office and civil applications.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
Features
Specifications
| Selection Guide | ||||
| Part No. | Output Power | Nominal Output Voltage and Current (Vo/Io) | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF) Max. |
| LO05-12B03 | 3.3W | 3.3V/1000mA | 66 | 4000 |
| LO05-12B05 |
5W |
5V/1000mA | 73 | 3400 |
| LO05-12B09 | 9V/550mA | 75 | 1200 | |
| LO05-12B12 | 12V/420mA | 77 | 1000 | |
| LO05-12B15 | 15V/330mA | 77 | 680 | |
| LO05-12B24 | 24V/210mA | 79 | 270 | |
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Voltage Range |
AC input | 165 | -- | 264 | VAC |
| DC input | 230 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 60 | Hz | |
|
Input Current |
165VAC | -- | -- | 125 |
mA |
| 230VAC | -- | -- | 80 | ||
|
Inrush Current |
165VAC | -- | 13 | -- |
A |
| 230VAC | -- | 15 | -- | ||
| Leakage Current | 240VAC/50Hz | 0.25mA RMS typ. | |||
| Recommended External Input Fuse | 1A/250V slow-blow required | ||||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Output Voltage Accuracy |
3.3V output | -- | ±6 | -- |
|
|
| Other output | -- | ±5 | -- | |||
|
Line Regulation |
3.3V output |
Full load |
-- | ±2.5 | -- | |
| Other output | -- | ±1.5 | -- | |||
| Load Regulation | 10%-100% Load | -- | ±3 | -- | ||
| Ripple & Noise* | 20MHz bandwidth (peak-to-peak value) | -- | 50 | 150 | mV | |
| Mechanical Specifications | |
| Dimension | 42.00 x 16.00 x 17.00 mm |
| Weight | 9g(Typ.) |
| Cooling method | Free air convection |
