15W AC DC open frame medical power supply three-way output
Descriptions

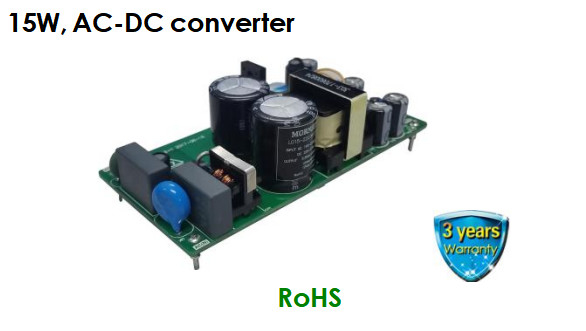

LO15-22C0612-04 a compact size power converter offered by Mornsun.It features universal input voltage,taking both DC and AC input
voltage,low power consumption,high efficiency,high reliability,safer isolation.It offers good EMC performance,which meet IEC60950 standards
Features
Specifications
| Selection Guide | ||||||||
Part No. |
Output Power | Nominal Output Voltage and Current | Efficiency (230VAC, %/Typ.) | Max. Capacitive Load(µF) | ||||
| (Vo1/Io1) | (Vo2/Io2) | (Vo3/Io3) | Vo1 | Vo2 | Vo3 | |||
| LO15-22C0612-04 | 15W | 5.9V/1.00A | 12V/0.40A | 12V/0.10A | 79 | 2000 | 1000 | 330 |
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
Input Voltage Range | AC input | 160 | -- | 264 | VAC | |
| DC input | 226 | -- | 370 | VDC | ||
| Input Frequency | 47 | -- | 63 | Hz | ||
Input Current | 160VAC | -- | -- | 0.4 | A | |
| 230VAC | -- | -- | 0.3 | |||
Inrush Current | 160VAC | -- | 20 | -- | ||
| 230VAC | -- | 30 | -- | |||
Input Over-voltage Protection | Input voltage < 418VAC (Input limit) | protection start | 290 | -- | 325 | VAC |
| protection release | 265 | -- | 285 | |||
| Hot Plug | Unavailable | |||||
| Output Specifications | |||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | ||
| Output Voltage Accuracy | Primary output | -- | ±2 | -- | % | ||
| Secondary output | -- | ±5 | ±8.3 | ||||
Line Regulation |
Full load | Primary output | -- | ±0.5 | -- | ||
| Secondary output | -- | ±1.5 | -- | ||||
Load Regulation |
10% - 100% load |
Isolated triple output (balanced load) | Primary output Vo1 | -- | ±3 | -- | |
| Secondary output Vo2 | ±5 | ||||||
| Secondary output Vo3 | -- | ±5 | -- | ||||
Ripple & Noise* |
20MHz bandwidth (peak-peak value) | Primary output | -- | 50 | 80 |
mV | |
| Secondary output | 100 | 150 | |||||
| Temperature Coefficient | Main circuit | -- | ±0.02 | -- | %/°C | ||
| Physical Specifications | |
| Dimension | 100.00 x 50.00 x 30.00 mm |
| Weight | 85g (Typ.) |
| Cooling method | Free air convection |
