45W AC DC Medical Switching Power Supply single output
Descriptions

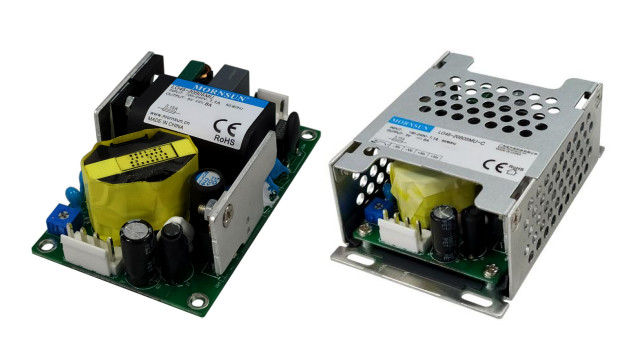

LO45-20BxxMU(-C) series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients)medical system equipment.It features universal AC input and at the same time accepts DC input voltage,cost-effective,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC and safety performance,which meet UL/IEC/EN/ES60601,UL/EN/IEC62368,IEC/EN60335,IEC/EN61558, GB4943 standards and they are widely used in areas of medical,electricity,security, telecommunications etc.
Features
Specifications
| Selection Guide | ||||||
|
Certification |
Part No.* |
Output Power |
Nominal Output Voltage and Current (Vo / Io) |
Output Voltage Adjustable Range ADJ (V) |
Efficiency at 230VAC (%) Typ. |
Capacitive Load (µF) Max. |
|
EN |
LO45-20B03MU(-C) | 26.4W | 3.3V/8.00A | 2.97-3.63 | 82 | 20000 |
| LO45-20B05MU(-C) | 40W | 5V/8.00A | 4.5-5.5 | 84 | 20000 | |
| LO45-20B12MU(-C) |
45W |
12V/3.75A | 10.2-13.8 | 86 | 4000 | |
| LO45-20B15MU(-C) | 15V/3.00A | 13.5-18 | 86 | 3500 | ||
| LO45-20B24MU(-C) | 24V/1.875A | 21.6-28.5 | 90 | 1000 | ||
| LO45-20B30MU(-C) | 30V/1.50A | / | 89 | 900 | ||
| LO45-20B36MU(-C) | 36V/1.25A | 32.4-39.6 | 90 | 820 | ||
| LO45-20B48MU(-C) | 48V/0.94A | 43.2-52.8 | 90 | 330 | ||
| Note: *Use suffix “-C” for enclosed version. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Voltage Range |
AC input | 85 | -- | 264 | VAC |
| DC input | 100 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
|
Input Current |
115VAC | -- | -- | 1100 |
mA |
| 230VAC | -- | -- | 700 | ||
|
Inrush Current |
115VAC | -- | -- | 40 |
A |
| 230VAC | -- | -- | 60 | ||
| Leakage Current | 240VAC | 75uA Max. | |||
| Hot Plug | Unavailable | ||||
| Mechanical Specifications | ||
|
Dimension |
LO45-20BxxMU | 76.20 x 50.80 x 26.50 mm |
| LO45-20BxxMU-C | 91.40 x 60.50 x 33.30 mm | |
|
Weight |
LO45-20BxxMU | 95g (Typ.) |
| LO45-20BxxMU-C | 150g (Typ.) | |
| Cooling method | Free air convection | |
