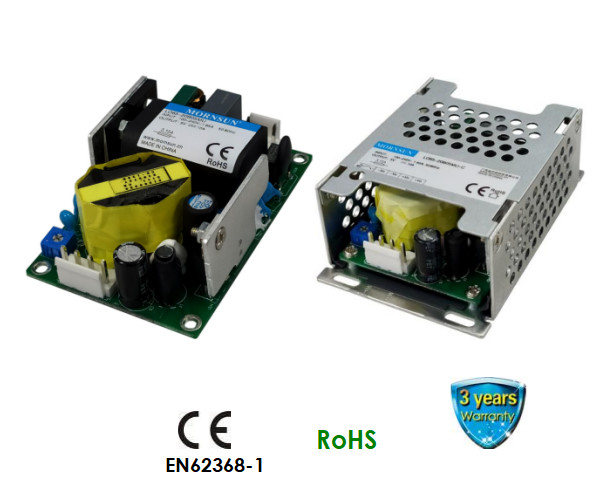

65W Switching Medical AC DC Power Supply 115VAC 230VAC Input Single Output

65W Switching Medical AC DC Power Supply 115VAC 230VAC Input Single Output

Products - AC DC Open Frame Power Supply
  • High Light

    65W Medical AC DC Power Supply

    ,

    Medical AC DC Power Supply 115VAC

    ,

    Medical Switching Power Supply 230VAC

  • Product Name
    65W AC DC Open Frame Switching Power Supply
  • Input Voltage
    85-264VAC
  • Output Voltage
    Single Output
  • Input Frequency
    47~63HZ
  • MTBF
    MIL-HDBK-217F@25℃ ＞300,000 H
  • Efficiency
    >=85%
  • Dimension
    76.20 X 50.80 X 26.50 Mm
  • Weight
    95g(Typ.)
  • Place of Origin
    China
  • Brand Name
    MORNSUN
  • Certification
    CE
  • Model Number
    LO65-20BxxMU(-C) Series
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiated
  • Packaging Details
    Carton packed
  • Delivery Time
    Negotiated
  • Payment Terms
    T/T
  • Supply Ability
    500Kpcs/month

65W Switching Medical AC DC Power Supply 115VAC 230VAC Input Single Output

  • 65W Switching Medical AC DC Power Supply 115VAC 230VAC Input Single Output
Get Price Contact Now

65W AC DC  Medical Power Supply single output



Descriptions



LO65-20BxxMU(-C) series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients)medical system equipment.It features universal AC input and at the same time accepts DC input voltage,cost-effective,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC and safety performance,which meet UL/IEC/EN/ES60601,UL/EN/IEC62368,IEC/EN60335,IEC/EN61558, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security, telecommunications,smart home,medical,etc.





Features

  • l Universal 85-264VAC or 100-370VDC input voltage
  • l High power density, compact size: 3” x 2” x 1.03” (LO65-20BxxMU)
  • 3.6” x 2.4” x 1.3” (LO65-20BxxMU-C)
  • l Operating ambient temperature range: -40℃ to +70℃
  • l High I/O isolation test voltage up to 4000VAC
  • l Meets 5000m altitude requirements
  • l Extremely low leakage current＜75uA
  • l Stand-by power consumption＜0.3W
  • l Output short circuit, over-current, over-voltage protection
  • l Efficiency up to 91%
  • l Meets 2 x MOPP safety certification
  • l Suitable for BF application
  • l Over-voltage class Ⅲ (designed to meet EN61558-1)



​Specifications


Selection Guide
CertificationPart No.*Output PowerNominal Output Voltage and Current (Vo/Io)Output Voltage Adjustable Range ADJ (V)Efficiency at 230VAC (%) Typ.Capacitive Load (µF) Max.





EN

LO65-20B03MU(-C)33W3.3V/10.00A2.97-3.638420000
LO65-20B05MU(-C)50W5V/10.00A4.5-5.58520000
LO65-20B12MU(-C)




65W

12V/5.42A10.2-13.8898000
LO65-20B15MU(-C)15V/4.34A13.5-18907000
LO65-20B24MU(-C)24V/2.71A21.6-28.5901500
LO65-20B36MU(-C)36V/1.81A32.4-39.6911000
LO65-20B48MU(-C)48V/1.36A43.2-52.891470
Note: *Use suffix “-C” for enclosed version.
Input Specifications
ItemOperating ConditionsMin.Typ.Max.Unit



Input Voltage Range

AC input85--264VAC
DC input100--370VDC
Input Frequency 47--63Hz



Input Current

115VAC----1650



mA

230VAC----950



Inrush Current

115VAC----40



A

230VAC----60
Leakage Current240VAC75uA Max.
Hot Plug Unavailable
Mechanical Specifications



Dimension

LO65-20BxxMU76.20 x 50.80 x 26.50 mm
LO65-20BxxMU-C91.40 x 60.50 x 33.30 mm



Weight

LO65-20BxxMU95g (Typ.)
LO65-20BxxMU-C150g (Typ.)
Cooling methodFree air convection
