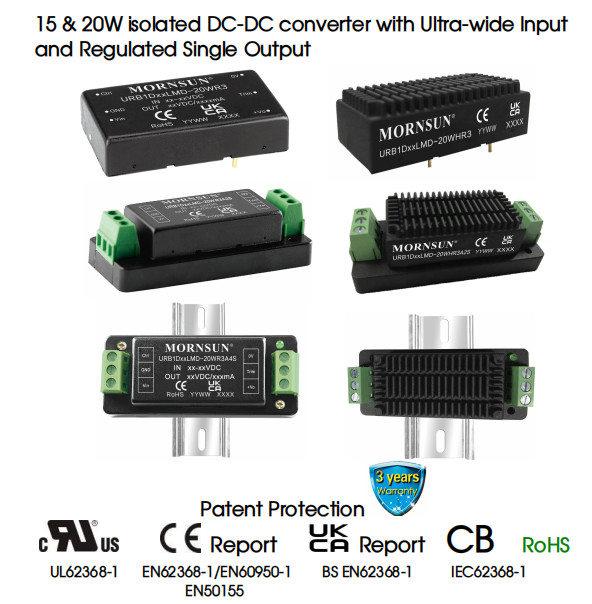

Railway DC DC converter 15 & 20W isolated DC-DC converter with Ultra-wide Input and Regulated Single Output
Description
URB1D_LMD-15W(H)R3 15W and URB1D_LMD-20W(H)R3 20W series of isolated DC-DC converter products have an ultra-wide 4:1 input voltage and feature efficiencies of up to 86%. input to output isolation is tested with 250VDC and the converters safely operateing an ambient temperature of -40℃ to +85℃ and are offered with various mounting options idealy electronic equipment and railway vehicle applications using 72V, 96V and 110V battery voltages.The modules are fuly featured, protected and include remote On/Off and Trim function for output voltage adjustment
Features
| Selection Guide | |||||||
| Certification① | Part No. ② | Input Voltage (VDC) | Output |
Full Load Efficiency④(%) Min./Typ. |
Capacitive Load(µF) Max. |
||
| Nominal (Range) | Max.③ | Voltage (VDC) | Current(mA) Max./Min. | ||||
| EN/BS EN | URB1D03LMD- 15WR3 |
1 10 (40- 160) |
170 |
3.3 | 4000/0 | 80/82 | 5400 |
| URB1D05LMD- 15WR3 | 5 | 3000/0 | 82/84 | 5400 | |||
| UL/EN/BS EN/IEC | URB1D12LMD- 15WR3 | 12 | 1250/0 | 82/84 | 1000 | ||
| EN/BS EN | URB1D15LMD- 15WR3 | 15 | 1000/0 | 83/85 | 820 | ||
| UL/EN/BS EN/IEC | URB1D24LMD- 15WR3 | 24 | 625/0 | 83/85 | 270 | ||
|
EN/BS EN |
URB1D03LMD-20WR3 | 3.3 | 5000/0 | 80/82 | 10000 | ||
| URB1D05LMD-20WR3 | 5 | 4000/0 | 82/84 | 10000 | |||
| URB1D12LMD-20WR3 | 12 | 1667/0 | 83/85 | 1600 | |||
| URB1D15LMD-20WR3 | 15 | 1333/0 | 84/86 | 1000 | |||
| UL/EN/BS EN/IEC | URB1D24LMD-20WR3 | 24 | 833/0 | 84/86 | 470 | ||
|

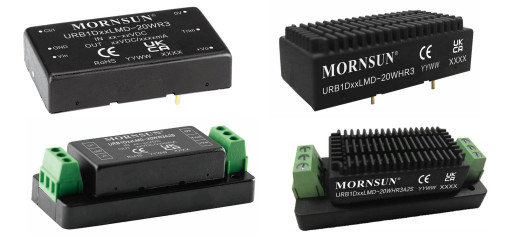

Note: ①URB1D_LMD- 15W(H)R3 series CE certification standards for EN62368- 1 and EN50155; RB1D_LMD-20W(H)R3 series CE certification standards for EN60950- 1 and EN50155; ②Use“H”suffix for heat sink mounting,“A2S”suffix for chassis mounting and“A4S”suffix for DIN-Rail mounting. We recommend to choose modules with a heat sink for enhanced heat dissipation and applications with extreme temperature requirements; ③Absolute maximum stress rating without damage (not recommended); ④Efficiency is measured at nominal input voltage and rated output load; efficiencies for A2S and A4S Model’s is decreased by 2% due to the input reverse polarity protection circuit. |
|||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Current (full load / no-load) |
URB1D_LMD- 15WR3 series, Nominal input voltage |
3.3V output | -- | 147/ 10 | 150/20 |
A |
| 5V output | -- | 163/ 10 | 167/20 | |||
| Others | -- | 159/3 | 166/8 | |||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Current (full load / no-load) |
URB1D_LMD- 15WR3 series, Nominal input voltage |
3.3V output | -- | 147/ 10 | 150/20 |
A |
| 5V output | -- | 163/ 10 | 167/20 | |||
| Others | -- | 159/3 | 166/8 | |||
| Mechanical Specifications | |||
| Case Material | Aluminum alloy | ||
|
Dimensions |
Without heat sink |
Horizontal package | 50.80 × 25.40 × 1 1.80mm |
| A2S chassis mounting | 76.00 × 31.50 × 21.20 mm | ||
| A4S Din-rail mounting | 76.00 × 31.50 × 25.80 mm | ||
|
Dimensions |
With heat sink |
Horizontal package | 51.40 × 26.20 × 16.50mm |
| A2S chassis mounting | 76.00 × 31.50 × 25.30 mm | ||
| A4S Din-rail mounting | 76.00 × 31.50 × 29.90 mm | ||
| Weight | Without heat sink | Horizontal package/A2S chassis mounting/A4S Din-rail mounting | 26.0g/48.0g/68.0g(Typ.) |
| With heat sink | Horizontal package/A2S chassis mounting/A4S Din-rail mounting | 34.0g/56.0g/76.0g(Typ.) | |
| Cooling Method | Free air convection | ||
