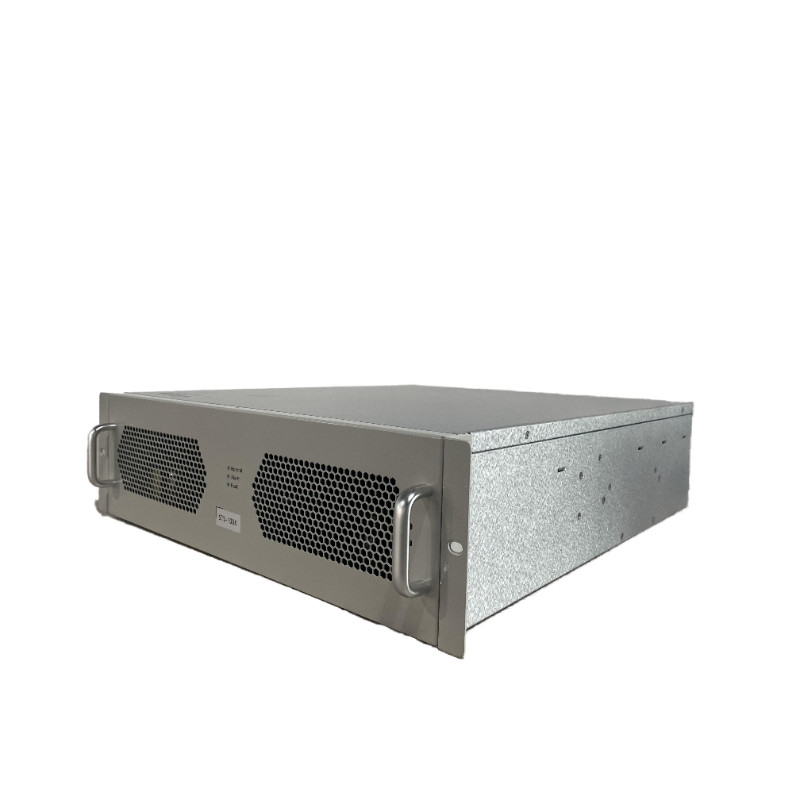

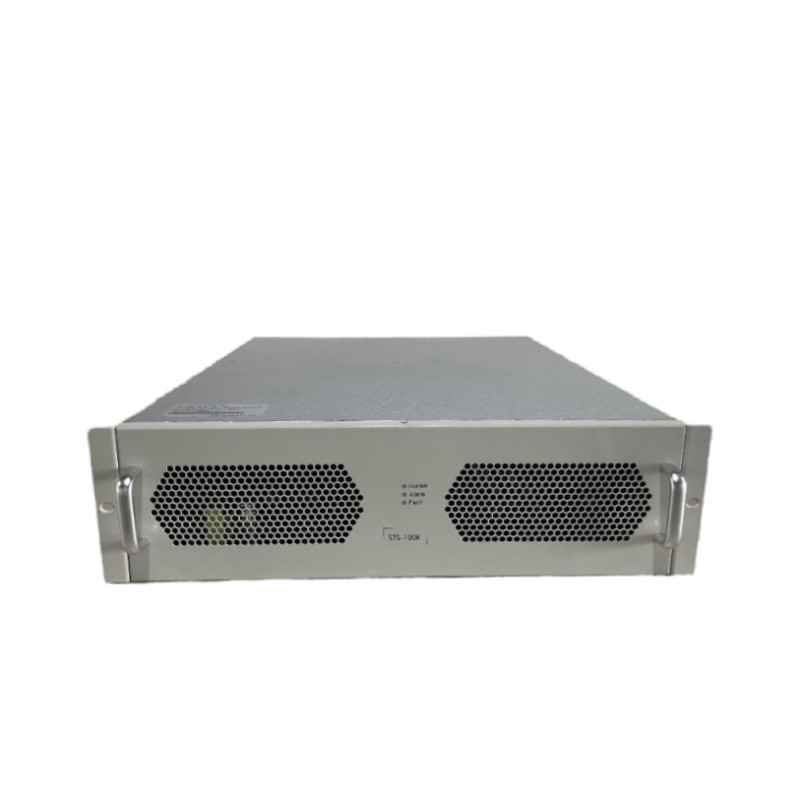

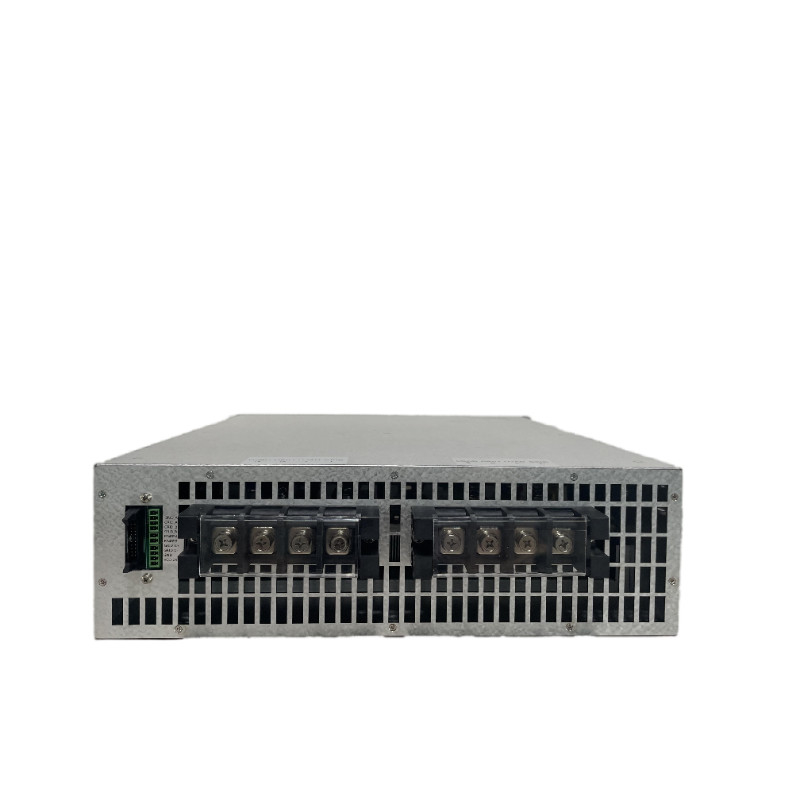

20kW 40kw 60kw  STS Power Module On Grid And Off Grid

20kW 40kw 60kw STS Power Module On Grid And Off Grid

  • High Light

    20kW STS Power Module

    ,

    STS 50Hz Power Module

    ,

    440*86*480 mm STS Power Module

  • Rated Power Grid Voltage
    380/400/415Vac
  • Rated Frequency
    50Hz
  • Rated Power
    20KW/40KW/60KW
  • Rated Current
    31A
  • Dimension
    440*86*480mm
  • Noise
    <60dB
  • Protectional Leveal
    IP20
  • Place of Origin
    China
  • Brand Name
    Imax Power
  • Certification
    CE applicance
  • Model Number
    STS-20K, STS-40K, STS-60K
  • Minimum Order Quantity
    1PCS
  • Price
    USD
  • Packaging Details
    Carton Packed
  • Delivery Time
    5~8 working days
  • Payment Terms
    T/T

20kW 40kw 60kw STS Power Module On Grid And Off Grid

20KW/40KW/60KW STS Power Module On grid and off grid switching



【Overview】 The grid-connected/off-grid switching STS module adopts seamless switching technology using static switches, supporting seamless switching between grid-connected and off-grid modes. It is designed with DSP and supports CAN/RS485 communication. This module is widely used in applications that require grid-connected/off-grid switching, such as weak power grid areas and microgrid energy storage, to ensure uninterrupted power supply to critical loads.

【Product Advantages】 Three-phase five-wire system (3W+N+PE), supporting off-grid unbalanced loads. When combined with the PCS module, it can achieve seamless switching between grid-connected and off-grid modes, ensuring uninterrupted power supply to critical loads. Module design for easy installation and maintenance. Module height is only 2U, compact structure, and high power density.

【Application Areas】 Weak power grid areas, microgrid energy storage. In applications such as weak power grid areas and microgrid energy storage, when the grid is available, power can flow bidirectionally between the battery and the grid, allowing for charging and discharging functions, peak shaving, and earning electricity price differences. When the grid experiences a power outage, the grid-connected/off-grid switching STS module switches to battery power to ensure uninterrupted power supply to the loads.



Specification



Product name STS Power Module On Grid And Off Grid Switching
Model No. STS-20K STS-40K STS-60K
Electrical parameter









parameter



input
  • three-phase five-wire(3W+N+PE)
Input rate voltage 380/400/415Vac
Voltage range 304~485Vac
Rated frequency 50Hz
Frequency range 45~55Hz
Rated current 31A 62A 93A
Rated power 20kW 40kW 60kW
Overload capacity 110%,Long-term overloading;125%,Overload 10 minutes
Other performances





Protection function

Over-voltage protection



Available

Over-current protection



Available
Short circuit protection Available
Over Temp. protection Available
Backflow Protection Available









Other parameter

operating temperature -30~65℃ , >55℃ power derating
storage temperature -40~75℃
noise 65dB
Dimension(W*H*D) 440*86*480mm
G.W 11kg
IP Grade IP20(single module)
Cooling method Forced air
