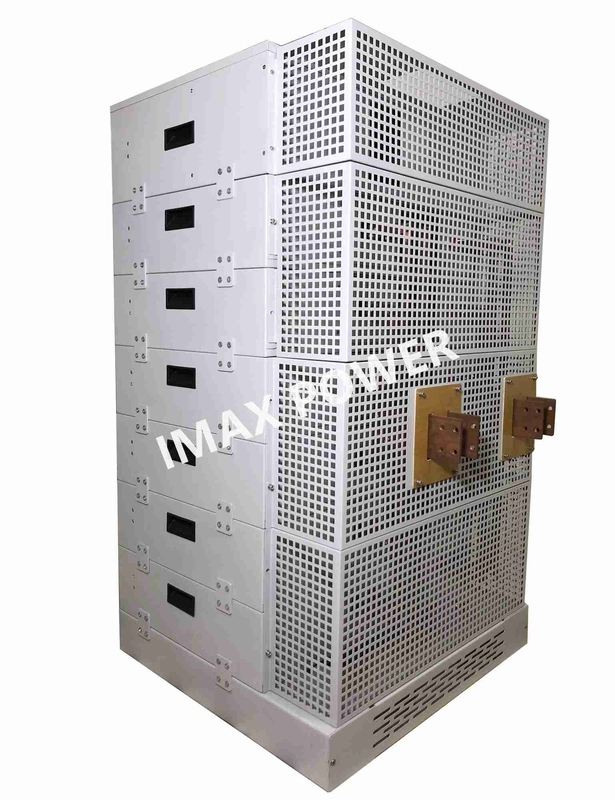

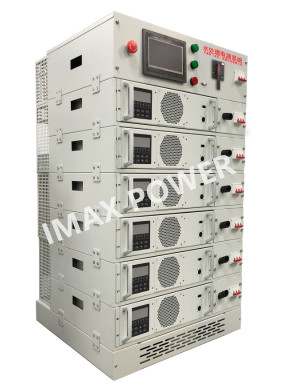

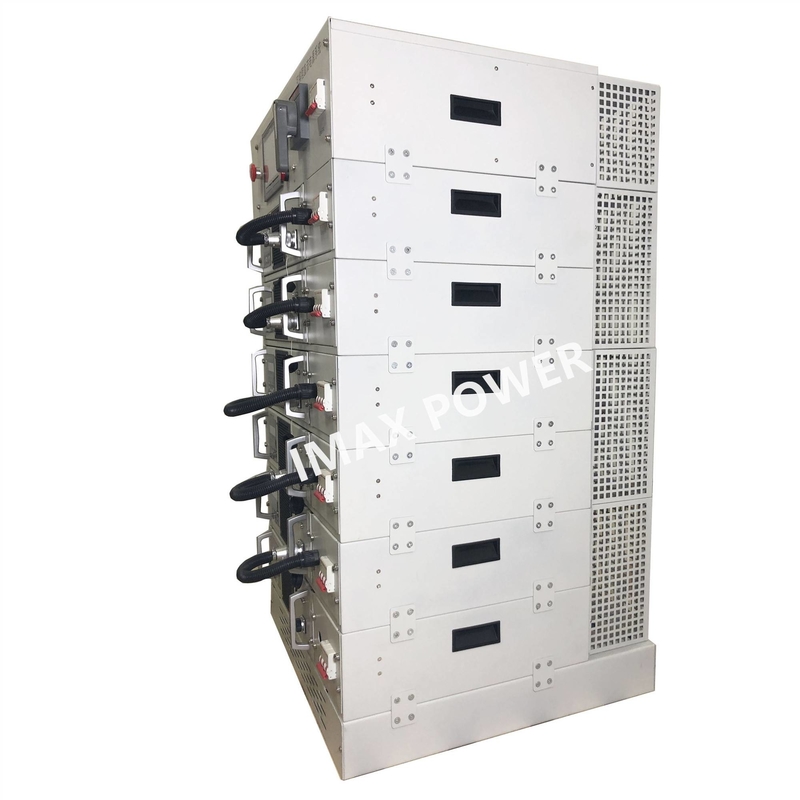

750VDC AC DC Enclosed Power Supply 12V , Mico Arc Aluminum Anodizing Rectifier

750VDC AC DC Enclosed Power Supply 12V , Mico Arc Aluminum Anodizing Rectifier

Product Description:

IPMA series is a line of high frequency pulse rectifiers designed to meet all galvanic surface treatment requirements. Based on high speed IGBT technology, they provide high efficiency and performance.

Model name

I  P  M  A– 750 /200

1 2  3   4     5     6

1-  I means "IMAX"

2-  Pulse output

3-  module

4-  Air cooled

5- 750V Rated output Voltage

6- 200A Rated output current

Supported 342VAC to 418VAC three-phase voltage input, output voltage and current can be customized, Low Ripple,IMAX rectifiers adopt pulse width modulation (PWM) technique for the controlling of current amplitude and adopt full digital design, using TI 12-bit DSP control.

MAIN FEATURES

Electrical features

Ø Input:342VAC~418VAC,Three phase input.

Ø DSP control,Output current,High voltage accuracy

       Ø Modular design with flexible DC outputs in the efficient switch mode technology.

       Ø Power Supplies available as air or water cooled models

       Ø Module Dimension (H*W*D):132*450mm*486mm

       Ø Supports CAN bus /RS485 communication

       Ø Support constant voltage, constant current mode, and can be freely switched

       Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection

       Ø Supports output over voltage, over current, short circuit, and over temperature protection

       Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.

       Ø All input/output connections in the back for easy access

Ø Cooling systems :Air cooled system or water cooled system.

Energy saving & high accuracy

Ø High speed IGBT technology

Ø Modular power platform and multi-tower interconnection

Ø Microprocessor controlled

Ø Up to 40% power saving versus Silicon Controlled Rectifier (SCR)

Ø Low output current ripple

Ø Fast response time and high stability to load variation (~1ms)

Available Interfaces

> RS485 *

> RS232 *

> Profibus-DP

> Device Net

> Analogue 0-10V

> Analogue 4-20mA

Typical Parameters:

Output waveform:

Vo: DC output voltage.

t1: Soft start time

T2:Working time

You can set them as required.
