DC Rectifier 380VAC input High Frequency DC Power Supply 400VDC 3 Phase AC To DC Rectifier
Description:
IDMA series is a line of high frequency DC rectifiers designed to meet all surface treatment requirements. Based on high speed IGBT technology, they provide high efficiency and performance. Supported three-phase voltage input, output voltage and current can be customized, Low Ripple,Our rectifiers adopt PWM technique for the controlling of current amplitude and adopt full digital design, using TI 12-bit DSP control.
Application
1.Surface Oxidation Treatment
2.Etching surface Treatment.
3.Metal smelting: Aluminum,Copper, Zine, Lead,Manganese,Magnesium,etc
4.Ionic membrane: Electrolysis of salt,etc
5.Silicon carbide smelting & Graphitization furnace
6.Experimental power supply
7.Copper foil, aluminum foil special power supply
8.Electrochemical: Chlor-alkali, etc
9.Electrolysis: Copper,Zine,Tin,Lead,Aluminum foil,Copper foil
Model name
I D M A – 400 /200
1 2 3 4 5 6
1- I means "IMAX"
2- DC output
3- module
4- Air cooled
5- 400V Rated output Voltage
6- 200A Rated output current
Features
Electrical features
Ø Input:342VAC~418VAC,Three-phase input.
Ø DSP control,Output current,High voltage accuracy
Ø Modular design with flexible DC outputs in the efficient switch mode technology.
Ø Power Supplies available as air or water cooled models

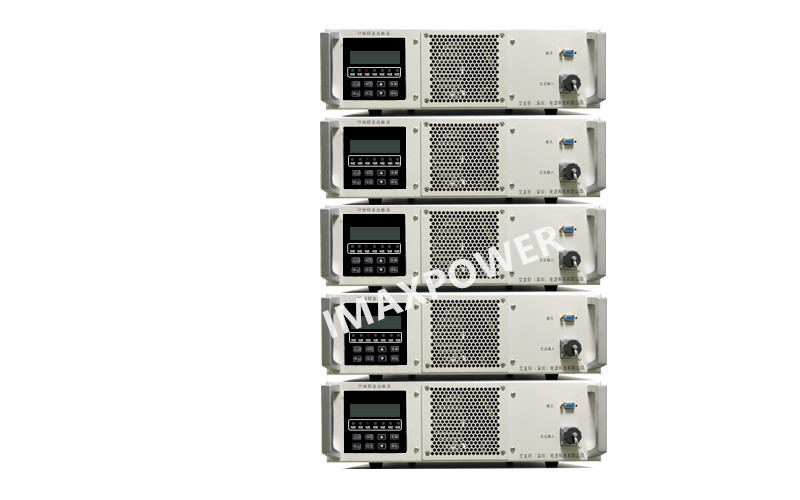

Ø Module Dimension (H*W*D):132*450mm*486mm, 3U height.
Ø Supports CAN bus /RS485 communication
Ø Support constant voltage, constant current mode, and can be freely switched
Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection
Ø Supports output over voltage, over current, short circuit, and over temperature protection
Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.
Ø All input/output connections in the back for easy access
Ø Cooling systems :Air cooled system or water cooled system.
Energy saving & high accuracy
Ø High speed IGBT technology
Ø Modular power platform and multi-tower interconnection
Ø Microprocessor controlled
Ø Up to 40% power saving versus Silicon Controlled Rectifier (SCR)
Ø Low output current ripple
Ø Fast response time and high stability to load variation (~1ms)
Hardware features
ØSpace saving & easy capacity increase
ØLight weight (from 25kg)
ØModular and multi-tower construction
ØMain switch and operator panel in the front
ØAll input/output connections in the back for easy access
Software features
Ø Simple output parameters and waveform programming from the operator panel, remote control or
Ø PC/PLC (current, voltage, cycle time and ramp time)
Ø Customized software available
Ø High precision voltage and current regulation (1000 steps)
Ø Allows you to customize the output soft start time and working time
Ø A/h and A/min meters for precise thickness and dosing pumps control
Ø Operation Modes Manual (Through operator panel or remote control) Automatic (Via PC or PLC)
Available Interfaces
Ø RS485 *
ØRS232 *
Ø Profibus-DP
Ø Device Net
Ø Analogue 0-10V
ØAnalogue 4-20mA
Typical Parameters:
| Output voltage | Output current | Dimension(mm) |
| 0~12V | 0~1000A | 450*486*(customized) |
| 0~60V | 0~1000A | 450*486*(customized) |
| 0~40V | 0~2000A | 450*486*(customized) |
| 0~110V | 0~800A | 450*486*(customized) |
| 0~600V | 0~700A | 450*486*(customized) |
| 0~300V | 0~4000A | 450*486*(customized) |
Specifications:
| Input | Voltage | AC380Vac±10% |
| Frequency | 45~66Hz | |
| Input current | ≤26A | |
| Output | Rated DC voltage | 400Vdc |
| Rated DC current | 200A | |
| Output voltage range | 0~400VDC | |
| Efficiency(MAX) | ＞93% | |
| others |
voltage/current Accuracy |
≤±0.5﹪(20%~100%rated output current,customized) |
| Temperature coefficient | ≤0.05％/℃ | |
| Output Ripple | ＜±0.5%；customized | |
| Isolated&withstand voltage | 2000Vac50HZ/1minInput-output/input-G/output-G | |
| Protection | Input under voltage/over voltage | 330(±5) V/(425±5) V shut down, Free adjustable. |
| Output over voltage protection point | Free adjustable | |
| Output current limiting protection | Free adjustable | |
| over-temperature protection | Temp. Of goes up ＞80℃,shut down. | |
| Communication alarm | C communication protocol | CAN/RS485 |
| Alarms and Status | CAN Bus Reported /LCD display and LED indicated | |
| physical characteristics | Operation environment | Indoor |
| Cooling method | Intelligent air cooling ≤65dB | |
| Dimension(W*D*H) | 450mm*486mm*(Height depended by the output Power) | |
| Net weight per module | TBD |
Output waveform:
Vo: DC output voltage.
t1: Soft start time
T2:Working time
You can set them as required.
