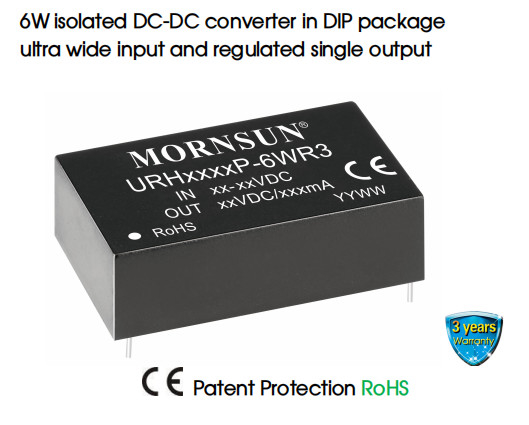

6W DC-DCconverter
Description
URH240xP-6WR3 series of isolated 6W DC-DC converter products with an ultra wide input voltage range of 9 - 36VDC, 18-75VDC, input to output isolation is tested with 60VDC, out put over-voltage protection and out put shor tcircuit protection, EN60601-1 aproval; they are widely used in applications that requiring high isolation, such as medical, electricity,also for energy storage systems that requiring an low no-load power consumption.
Features
Specification
| Selection Guide | |||||||
| Certification | Part No. | Input Voltage (VDC) | Output |
Full Load Efficiency (%) Min./Typ. |
Max. Capacitive Load(µF) |
||
|
Nominal (Range) |
Max.* | Voltage (VDC) | Current (mA) Max./Min. | ||||
|
CE |
URH2405P-6WR3 |
24 (9-36) |
40 |
5 | 1200/0 | 78/80 | 2700 |
| URH2406P-6WR3 | 6 | 1000/0 | 79/81 | 2200 | |||
| URH2409P-6WR3 | 9 | 667/0 | 81/83 | 1800 | |||
| URH2412P-6WR3 | 12 | 500/0 | 82/84 | 1000 | |||
| URH2415P-6WR3 | 15 | 400/0 | 83/85 | 680 | |||
| -- | URH2418P-6WR3 | 18 | 333/0 | 83/85 | 1200 | ||
|
CE |
URH2424P-6WR3 | 24 | 250/0 | 82/84 | 470 | ||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Current (full load / no-load) | 24VDC input | -- | 309/5 | 317/8 |
A |
| Reflected Ripple Current | 24VDC input | -- | 20 | -- | |
| Surge Voltage (1sec. max.) | 24VDC input | -0.7 | -- | 50 |
VDC |
| Start-up Voltage | 24VDC input | -- | -- | 9 | |
| Input Under-voltage Protection | 24VDC input | 5.5 | 6.5 | -- | |
| Input Filter | Pi filter | ||||
| Mechanical Specifications | |
| Case Material | Black flame-retardant and heat-resistant plastic (UL94 V-0) |
| Dimensions | 31.60 × 20.30 × 10.20 mm |
| Weight | 13.0g(Typ.) |
| Cooling method | Free air convection |
