Description

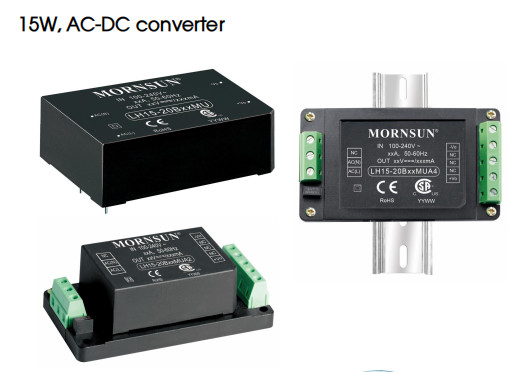

LH15-20BxMUseries-----is a compact size power converter offered by Mornsun.It features universal input voltage,taking both DC and AC Input voltage,low power consumption,highe ficiency,high reliability,safer isolation. Meets IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1, CAN/CSA-C2.2 No. 60601-1standards(2xMOPP), and widely used in medical,industrial,instruments,telecommunication and civil applications. For harsh EMC environment,the application circuit in the datasheet is strongly recommended.
Features
Specification
| Selection Guide | |||||
| Certification | Part No. | Output Power |
Nominal Output Voltage and Current (Vo/Io) |
Efficiency (230VAC, %/Typ.) |
Max. Capacitive Load(µF) |
|
CSA/CE/CB |
LH15-20B05MU | 14W | 5V/2800mA | 78 | 8000 |
| LH15-20B12MU |
15W |
12V/ 1250mA | 83 | 4000 | |
| LH15-20B15MU | 15V/ 1000mA | 83 | 3000 | ||
| LH15-20B18MU | 18V/833mA | 84 | 2000 | ||
| LH15-20B24MU | 24V/625mA | 86 | 800 | ||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 100 | -- | 370 | VDC | |
| Input frequency* | 47 | -- | 440 | Hz | |
| Input current | 1 15VAC | -- | -- | 0.37 |
A |
| 230VAC | -- | -- | 0.22 | ||
| Inrush current | 1 15VAC | -- | 10 | -- | |
| 230VAC | -- | 20 | -- | ||
| Leakage current | 0. 1mA RMS typ./264VAC/60Hz | ||||
|
Recommended External Input Fuse (Chassis mounting, DIN-Rail mounting package series include fuse) |
2A/250V, slow fusing | ||||
| Hot Plug | Unavailable | ||||
| *Medical Certification Input frequency range:47-63 Hz | |||||
| Physical Specifications | ||
| Casing Material | Black flame-retardant and heat-resistant plastic (UL94 V-0) | |
| Dimension | Horizontal package | 62.00*45.00* 22.50mm |
| A2 chassis mounting | 96. 10*54.00*31.00mm | |
| A4 Din-Rail mounting | 96. 10*54.00*35.60 mm | |
| Weight | Horizontal package | 85g (Typ.) |
| A2 chassis mounting | 135g (Typ.) | |
| A4 Din-Rail mounting | 175g (Typ.) | |
| Cooling method | Free air convection | |
