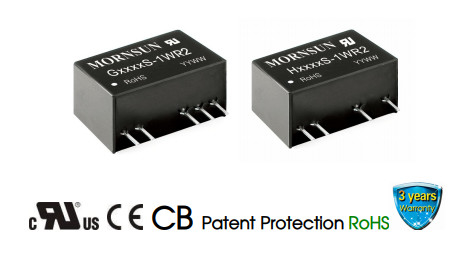

1W Medical DC DC converter H_S-1WR2 Series
Description
H_S-1WR2 series meet reinforced insulation requirements.They are specially designed for applications where require compact size,high isolation,low isolation capacitor and low leakage current power.They are widely used in medical,electricity,IGBT driver and so on.They are suitable for:
1.Where the voltage of the input power supply is stable(voltage variation:±10%Vin);
2.Where isolation is necessary between input and output (isolation voltage ≤4200VAC or 6000VDC); 3.Where do not has high requirement of line regulation and the ripple&noise of the output voltage; Such as:Medical collection and solation,High voltage collection circuit,IGBT-driven circuits,etc.
Features
Specification
| Selection Guide | ||||||
|
Certification |
Part No. |
Input Voltage (VDC) | Output |
Efficiency (%,Min./Typ.) @ Full Load |
Max. Capacitive Load* (µF) |
|
| Nominal (Range) |
Output Voltage(VDC) |
Output Current (mA)(Max./Min.) | ||||
| -- | H0305S-1WR2 |
3.3 (2.97-3.63) |
5 | 200/20 | 67/71 | 1000 |
|
UL/CE/CB |
H0503S-1WR2 | 3.3 | 303/31 | 69/73 | 1000 | |
| H0505S-1WR2 | 5 | 200/20 | 74/78 | 1000 | ||
| H0512S-1WR2 | 12 | 84/9 | 72/76 | 470 | ||
| H0515S-1WR2 | 15 | 67/7 | 72/76 | 470 | ||
|
UL/CE/CB |
H1205S-1WR2 | 5 | 200/20 | 73/77 | 1000 | |
| H1212S-1WR2 | 12 | 84/9 | 77/81 | 470 | ||
| H1215S-1WR2 | 15 | 67/7 | 77/81 | 470 | ||
|
UL/CE/CB |
H2405S-1WR2 | 5 | 200/20 | 72/76 | 1000 | |
| H2412S-1WR2 | 12 | 84/9 | 74/78 | 470 | ||
| H2415S-1WR2 | 15 | 67/7 | 74/78 | 470 | ||
| Note:* The capacitive loads of positive and negative outputs are identical. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Current (no-load/full load) |
3.3V input | -- | 45/426 | 70/-- |
mA |
| 5V input | -- | 35/274 | 60/-- | ||
| 12V input | -- | 15/114 | 40/-- | ||
| 15V input | -- | 18/93 | 40/-- | ||
| 24V input | -- | 10/56 | 25/-- | ||
|
Surge Voltage (1sec. max.) |
3.3V input | -0.7 | -- | 7 |
VDC |
| 5V input | -0.7 | -- | 9 | ||
| 12V input | -0.7 | -- | 18 | ||
| 15V input | -0.7 | -- | 21 | ||
| 24V input | -0.7 | -- | 30 | ||
| Reflected Ripple Current* | -- | 0.2 | -- | A | |
| Input Filter | Capacitor filter | ||||
| Hot Plug | Unavailable | ||||
| Note: *Reflected ripple current testing method please see DC-DC Converter Application Notes for specific operation. | |||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | See tolerance envelope curve (Fig. 1) | |||||
| Line Regulation | Input voltage change: ±1% | 3.3V output | -- | -- | ±1.5 | -- |
| Others | -- | -- | ±1.2 | |||
| Load Regulation | 10%-100% load | 3.3V/5V output | -- | -- | 20 | % |
| Others | -- | -- | 15 | |||
| Ripple & Noise* | 20MHz bandwidth | 3.3V output | -- | 80 | 150 | mVp-p |
| Others | -- | 70 | 120 | |||
| Temperature Coefficient | 100% full load | -- | ±0.02 | -- | %/℃ | |
| Output Short Circuit Protection** | -- | -- | 3 | s | ||
|
Note: *Ripple and noise tested with “parallel cable” method, please see DC-DC Converter Application Notes for specific operation methods. **Supply voltage must be discontinued at the end of short circuit duration which less than 3s. |
||||||
| Physical Specifications | |
| Casing Material | Black flame-retardant and heat-resistant plastic (UL94 V-0) |
| Package Dimensions | 19.50*9.80*12.50 mm |
| Weight | 4.2g(Typ.) |
| Cooling Method | Free air convection |
