Wide Input Automotive DC DC Converter 18VDC 3W Isolated Regulated

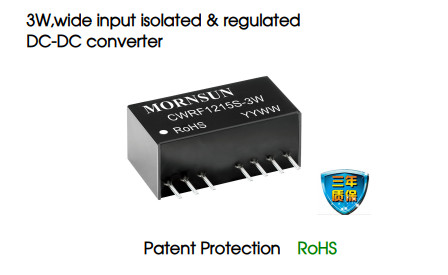

Automotive DC DC converter 3W wide input isolated & regulated DC-DC converter

Description

CWRF1215S-3Wproductis3Woutputpoweextremelywiderangeofvoltageinputof7-18VDC,isolationvoltageof430VDC;Production procesinacordancewithIATF16949systemcontrol,componentsmetAEC-Q10standards,Theproductisspecialdesignedfor automobileaplication.

Features

• Production process in accordance with
• IATF16949 system control,components meet AEC-Q100 standards,
• Applied to automobile industry
• High isolation voltage : 4.3K VDC
• Operating temperature range:-40C to + 105C
• International standard pin-out
• Wide input voltage range (2: 1)
• High efficiency up to 82%

Specification

Input Specifications
Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Current ( full load/ no-load)		--	305/30	313/50	A
Reflected Ripple Current		--	30	--
Input impulse Voltage (1 minute. max.)		-0.7	--	30	VDC
Starting Voltage		--	6.5	7
No-load power consumption		--	0.36	--	W
Input Filter		Capacitor filter
Hot Plug		Unavailable

Output Specifications
Item	Operating Conditions	Min.	Typ.	Max.	Unit
Output Power		0. 15	--	3	W
Output Voltage Accuracy	5%- 100% load	--	±5	± 10	%
Line Regulation	Full load, the input voltage is from low voltage to high voltage	--	±5	± 10
Load Regulation	5%- 100% load	--	±5	± 10
Temperature Coefficient	Full load	--	--	±0.03	%/C
Ripple & Noise*	20MHz bandwidth (5%- 100% load )	--	100	200	V
Short circuit Protection	Input voltage range	None
Note:* Rippleandnoisearemeasuredby“paralelcable”method, pleaseseDC-DC ConverterAplication Notesforspeccoperation.
