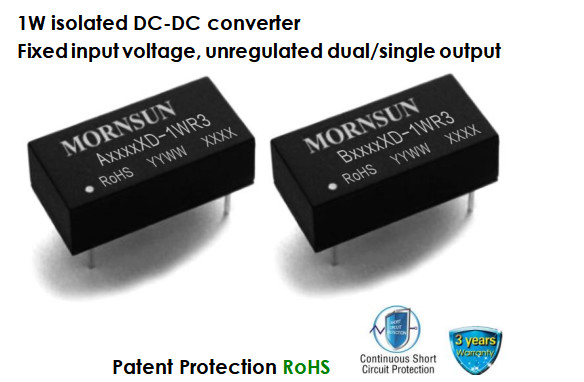

FEATURES
Specifications
| Selection Guide | |||||
|
Part No. |
Input Voltage (VDC) | Output |
Full Load Efficiency (%) Min./Typ. |
Capacitive Load(µF) Max. | |
| Nominal (Range) | Voltage (VDC) | Current(mA) Max./Min. | |||
| B0505XD-1WR3 |
5 (4.5-5.5) |
5 | 200/20 | 77/81 | 2400 |
| A0515XD-1WR3 | ±15 | ±34/±4 | 77/81 | 220 | |
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Current |
5VDC input | -- | 247/10 | 260/25 | mA |
| Reflected Ripple Current* | -- | 15 | -- | mA | |
| Surge Voltage (1sec. max.) | 5VDC input | -0.7 | -- | 9 | VDC |
| Input Filter | Capacitance Filter | ||||
| Hot Plug | Unavailable | ||||
| Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. | |||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Voltage Accuracy | See output regulation curve (Fig. 1) | |||||
| Linear Regulation | Input voltage change: ±1% | -- | -- | ±1.2 | -- | |
|
Load Regulation |
10%-100% load |
5VDC Output | -- | -- | 15 |
% |
| 15VDC Output | -- | -- | 10 | |||
| Ripple & Noise* | 20MHz bandwidth | -- | 30 | 75 | mVp-p | |
| Temperature Coefficient | Full load | -- | ±0.02 | -- | %/℃ | |
| Short-circuit Protection | Continuous, self-recovery | |||||
| Note:* The “parallel cable” method is used for Ripple and Noise test, please refer to DC-DC Converter Application Notes for specific information. | ||||||
| Mechanical Specifications | |
| Case Material | Black plastic; flame-retardant and heat-resistant (UL94-V0) |
| Dimensions | 20.00 x 10.00 x 7.00 mm |
| Weight | 2.4g(Typ.) |
| Cooling Method | Free air convection |
