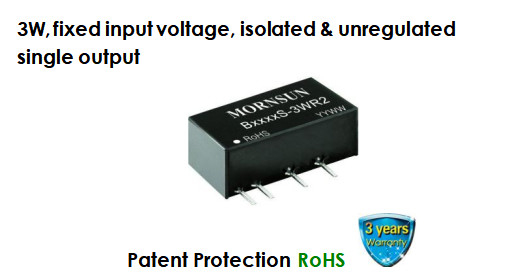

Description
FEATURES
Operating temperature range: -40℃ to +85℃
Ultra Compact SIP package
Isolation voltage: 1.5K VDC
High power density
No external component required
International standard pin-out
Specifications
| Selection Guide | |||||
|
Part No. |
Input Voltage (VDC) | Output | Efficiency (%,Min./Typ.) @ Full Load |
Max. Capacitive Load (µF) |
|
| Nominal (Range) | Output Voltage (VDC) | Output Current (mA) (Max./Min.) | |||
| B0505S-3WR2 |
5 (4.5-5.5) |
5 | 600/60 | 80/84 |
220 |
| B0509S-3WR2 | 9 | 333/33 | 80/84 | ||
| B1212S-3WR2 |
12 (10.8-13.2) |
12 | 250/25 | 84/88 | |
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
|
Input Current (full load / no-load) |
5V input | -- | 714/25 | -- | mA |
| 12V input | -- | 284/20 | -- | ||
| Reflected Ripple Current | -- | 15 | -- | mA | |
| Surge Voltage (1sec. max.) | 5V input | -0.7 | -- | 9 | VDC |
| 12V input | -0.7 | -- | 18 | ||
| Input Filter | Filter capacitor | ||||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | See tolerance envelope graph (Fig. 1) | |||||
| Line Regulation | Input voltage change: ±1% | -- | -- | ±1.2 | -- | |
| Load Regulation | 10%-100% load | -- | 8 | -- | % | |
| Ripple & Noise* | 20MHz bandwidth | 5VDC output | -- | 100 | -- | mVp-p |
| 9/12VDC output | -- | 150 | -- | |||
| Temperature Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Short Circuit Protection** | -- | 1 | -- | s | ||
|
Note: * Ripple and noise are measured by “parallel cable” method, please see DC-DC Converter Application Notes for specific operation. **Supply voltage must be discontinued at the end of short circuit duration. |
||||||
| Physical Specifications | |
| Casing Material | Black flame-retardant heat-proof plastic (UL94-V0) |
| Dimensions | 19.65*7.05*10.16mm |
| Weight | 2.4g(Typ.) |
| Cooling Method | Free air convection |
