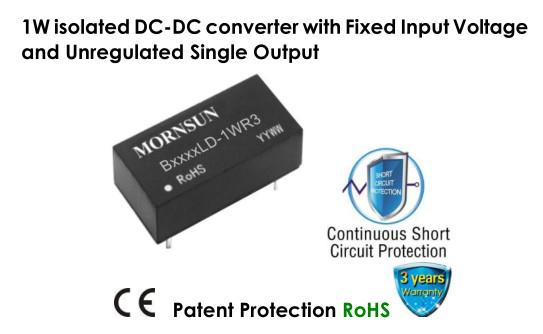

1W isolated DC-DC converter Fixed input voltage unregulated single output
Description
B0505LD-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system.They are suitable for:pure digital circuits,low frequency analog circuits,relay-driven circuits and data switching circuits.
FEATURES
Specifications
| Selection Guide | ||||||
|
Certification |
Part No. |
Input Voltage (VDC) | Output |
Full Load Efficiency ( % ) Min./Typ. |
Capacitive Load( µF ) Max. |
|
|
Nominal |
Voltage |
Current ( mA ) Max./Min. | ||||
| CE | B0505LD-1WR3 |
5 (4.5-5.5) |
5 | 200/20 | 78/82 | 2400 |
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Current (full load / no-load) | 5VDC output | -- | 270/5 | 286/10 | mA |
| Reflected Ripple Current* | -- | 15 | -- | ||
| Surge Voltage (1sec. max.) | -0.7 | -- | 9 | VDC | |
| Input Filter | Capacitance filter | ||||
| Hot Plug | Unavailable | ||||
| Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. | |||||
| Output Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Voltage Accuracy | See output regulation curve(Fig. 1) | ||||
| Linear Regulation | Input voltage change: ±1% | -- | -- | 1.2 | %/% |
| Load Regulation | 10%-100% load | -- | 10 | 15 | % |
| Ripple & Noise* | 20MHz bandwidth | -- | 30 | 75 | mVp-p |
| Temperature Coefficient | 100% load | -- | ±0.02 | -- | %/℃ |
| Short-circuit Protection | Continuous, self-recovery | ||||
| Note: * The “parallel cable” method is used for Ripple and Noise test, please refer to DC-DC Converter Application Notes for specific information. | |||||
| Mechanical Specifications | |
| Case Material | Black plastic; flame-retardant and heat-resistant (UL94 V-0) |
| Dimensions | 20.00 x 10.00 x 7.00mm |
| Weight | 2.1g(Typ.) |
| Cooling methods | Free air convection |
