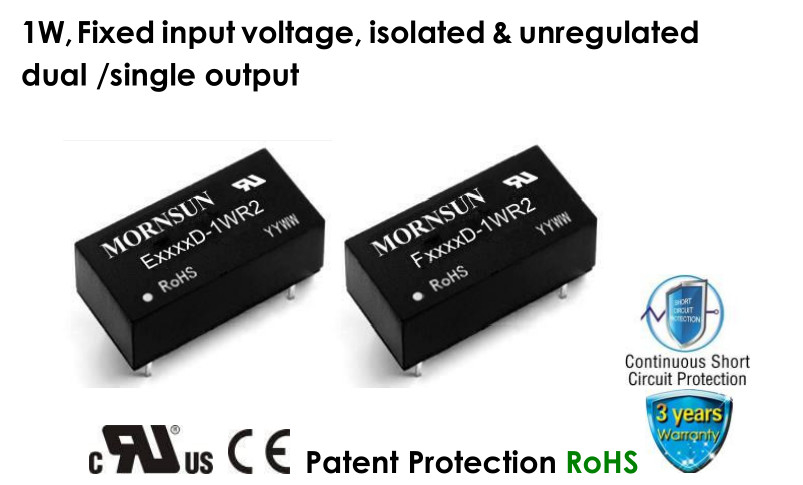

1W isolated DC-DC converter with Fixed Input Voltage and Unregulated Single Output



Description

E_D-1WR2 &F_D-1WR2 series are specially designed for applications where an isolated voltage is required in a distributed power supply system.They are suitable for

1. Where the voltage of the input power supply is stable(voltage variation:±10%Vin);

2. Where isolation between input and output is necessary(isolation voltage ≤3000VDC);

3. Where the output voltage regulation and the ripple&noise of the output voltage is not strictly required;

4. Typical application:digit circuit condition;normal low-frequency artificial circuit condition;relay drive circuit and data switching circuit condition,etc.



FEATURES

  • Continuous short-circuit protection
  • Operating temperature range: -40℃ to +105℃
  • High efficiency up to 81%
  • DIP package
  • Isolation voltage: 3K VDC
  • No external component required
  • International standard pin-out
  • UL60950,EN60950 approval



Specifications



Selection Guide



Certification



Part No.

 Input Voltage (VDC) Output

Efficiency (%,Min./Typ.)

@ Full Load



Max. Capacitive Load* (µF)
Nominal (Range) Output Voltage (VDC) Output Current (mA)(Max./Min.)















CE

 F0303D-1WR2

3.3

(2.97-3.63)

 3.3 303/31 68/72 220
E0505D-1WR2







5

(4.5-5.5)

 ±5 ±100/±10 75/79



100
E0512D-1WR2 ±12 ±42/±5 76/80
E0515D-1WR2 ±15 ±34/±3 77/81
F0503D-1WR2 3.3 303/31 71/75





220
F0505D-1WR2 5 200/20 76/80
F0512D-1WR2 12 83/9 76/80
F0515D-1WR2 15 67/7 77/81
E1205D-1WR2



12

(10.8-13.2)

 ±5 ±100/±10 76/80 100
F1205D-1WR2 5 200/20 76/80





220
F1212D-1WR2 12 83/9 76/80
F1215D-1WR2 15 67/7 77/81
UL/CE F1515D-1WR2

15

(13.5-16.5)

 15 67/7 76/80



CE

 E2412D-1WR2



24

(21.6-26.4)

 ±12 ±42/±5 77/81



100
E2415D-1WR2 ±15 ±34/±3 76/80
F2405D-1WR2 5 200/20 75/79 220
Note: *The capacitive loads of positive and negative outputs are the same.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit





Input Current

(full load / no-load)

 3.3V input -- 420/30 --/70





mA
5V input -- 256/20 --/60
12V input -- 106/15 --/50
15V input -- 84/10 --/35
24V input -- 54/7 --/30
Reflected Ripple Current   -- 15 -- mA





Surge Voltage (1sec. max.)

 3.3V input -0.7 -- 5





VDC
5V input -0.7 -- 9
12V input -0.7 -- 18
15V input -0.7 -- 21
24V input -0.7 -- 30
Input Filter   Filter capacitor
Hot Plug   Unavailable
Physical Specifications
Casing Material Black flame-retardant heat-proof plastic (UL94 V-0)
Dimensions 20.00*10.00*7.00mm
Weight 2.4g(Typ.)
Cooling Method Free air convection
