RS485 RS232 1000VDC high effciency DC Rectifier DC Power Supply three Phase input IGBT Rectifier Energy saving
Description

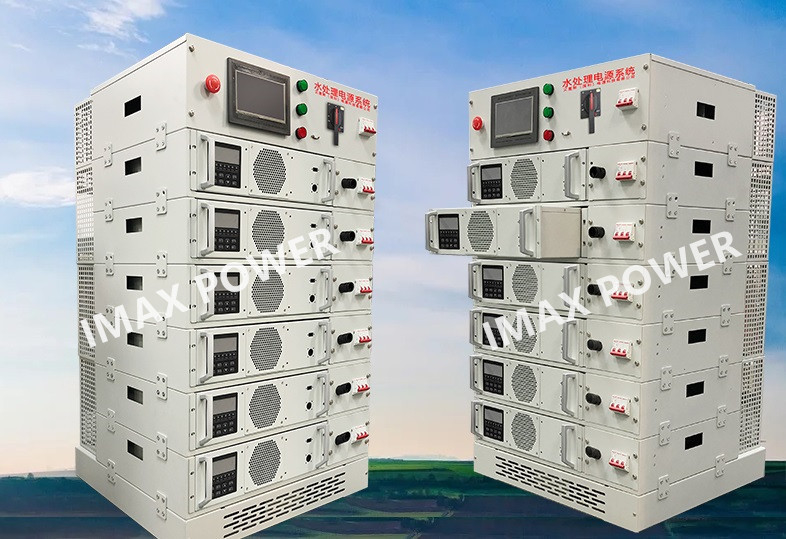

This rectifier adopts high frequency IGBT as semiconductor component and PWM modulation technology. It is modular structure design, easy to expand output current capacity, several rectifier modules could be connected in parallel and mounted in stack up to 20 modules to make more current single rectifier.adopt full digital design, using TI 12-bit DSP control.
Application
It is widely used in Electrochemical,surface treatment, shipbuilding industry, the petrochemical and power supply system, industrial control, electronic power,surface treatment, scientific research, instrumentation, military industry and other high-tech fields.
Model name
I D M A– 1000 /200
1 2 3 4 5 6
1- I means "IMAX"
2- DC output
3- module
4- Air cooled
5- 1000V Rated output Voltage
6- 200A Rated output current
FEATURES
Electrical features
Ø Input:342VAC~418VAC,Three phase input.
Ø DSP control,Output current,High voltage accuracy
Ø Modular design with flexible DC outputs in the efficient switch mode technology.
Ø Power Supplies available as air or water cooled models
Ø Module Dimension (H*W*D):132*450mm*486mm
Ø Supports CAN bus /RS485 communication
Ø Support constant voltage, constant current mode, and can be freely switched
Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection
Ø Supports output over voltage, over current, short circuit, and over temperature protection
Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.
Ø All input/output connections in the back for easy access
Energy saving & high accuracy
Ø High speed IGBT technology
Ø Modular power platform and multi-tower interconnection
Ø Microprocessor controlled
Ø Up to 40% power saving versus Silicon Controlled Rectifier (SCR)
Ø Low output current ripple
Ø Fast response time and high stability to load variation (~1ms)
Software features
Ø Simple output parameters and waveform programming from the operator panel, remote control
Ø PC/PLC (current, voltage, cycle time and ramp time)
Ø Customized software available
Ø High precision voltage and current regulation (1000 steps)
Ø Allows you to customize the output soft start time and working time
Ø A/h and A/min meters for precise thickness and dosing pumps control
Ø Operation Modes Manual (Through operator panel or remote control) Automatic (Via PC or PLC)
Available Interfaces
> RS485 *
> RS232 *
> Profibus-DP
> Device Net
> Analogue 0-10V
> Analogue 4-20mA
Typical Parameters:
| Output voltage | Output current | Dimension(mm) |
| 0~40V | 0~2000A | 450*486*(customized) |
| 0~20V | 0~2000A | 450*486*(customized) |
| 0~250V | 0~200A | 450*486*(customized) |
| 0~300V | 0~100A | 450*486*(customized) |
| 0~600V | 0~400A | 450*486*(customized) |
| 0~750V | 0~200A | 450*486*(customized) |
Specifications:
| Input | Voltage | AC380Vac±10% |
| Frequency | 45~66Hz | |
| Input current | ≤26A | |
| Output | Rated DC voltage | 1000V |
| Rated DC current | 200A | |
| Output voltage range | 0~1000V | |
| Efficiency(MAX) | ＞93% | |
| others |
voltage/current |
≤±0.5﹪(20%~100%rated output current,customized) |
| Temperature coefficient | ≤0.05％/℃ | |
| Output Ripple | ＜±0.5%；customized | |
| Isolated&withstand voltage | 2000Vac50HZ/1minInput-output/input-G/output-G | |
| Protection | Input under voltage/over voltage | 330(±5) V/(425±5) V shut down, Free adjustable. |
| Output over voltage protection point | Free adjustable | |
| Output current limiting protection | Free adjustable | |
| over-temperature protection | Temp. Of goes up ＞80℃,shut down. | |
| Communication alarm | C communication protocol | CAN/RS485 |
| Alarms and Status | CAN Bus Reported /LCD display and LED indicated | |
| physical characteristics | Operation environment | Indoor |
| Cooling method | Intelligent air cooling ≤65dB | |
| Dimension(W*D*H) | 450mm*486mm*(Height depended by the output Power) | |
| Net weight per module | TBD |
Output waveform:
Vo: DC output voltage.
t1: Soft start time
T2:Working time
You can set them as required.
