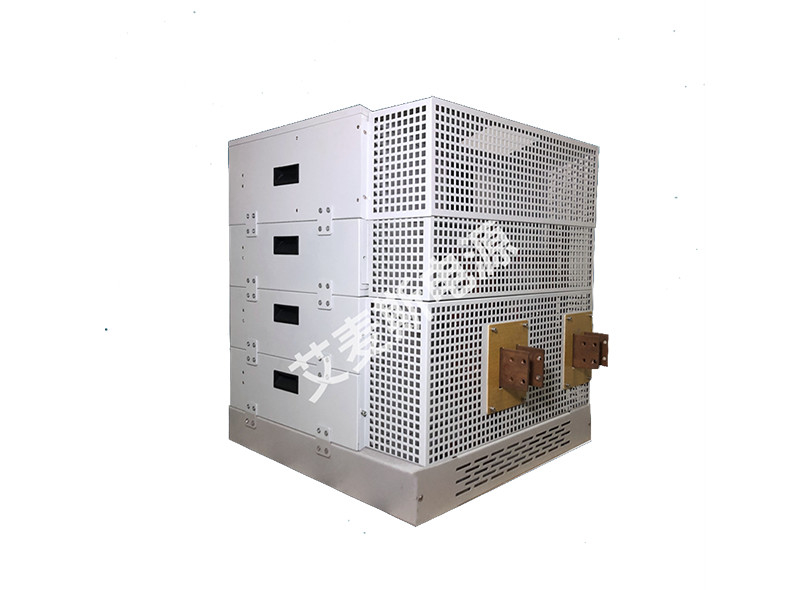

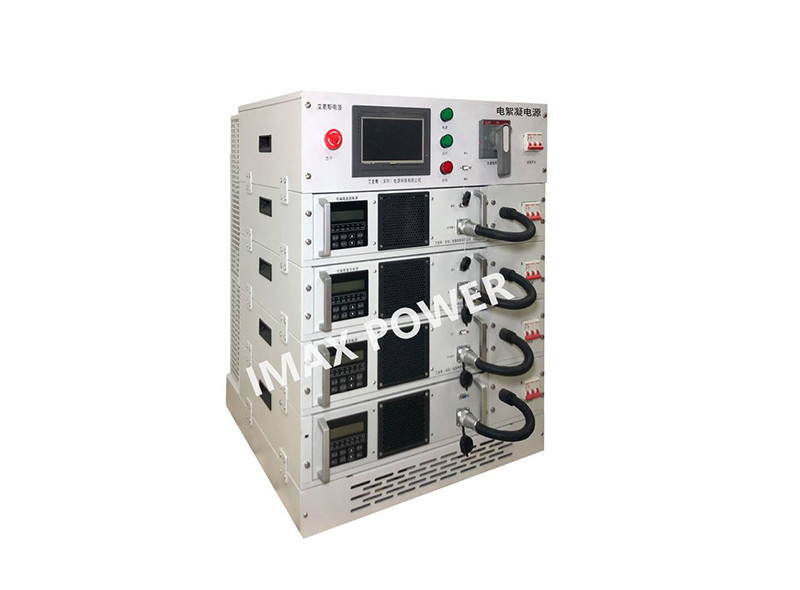

400VDC Pulse Reverse Power Supply 342VAC High Frequency 3 Phase DC Rectifier

400VDC Pulse Reverse Power Supply 342VAC High Frequency 3 Phase DC Rectifier

  • High Light

    400VDC Pulse Reverse Power Supply

    ,

    Pulse Reverse Power Supply 342VAC

    ,

    3 Phase DC Rectifier

  • Product Name
    IPMA-400/200 High Frequency Pulse And Pulse Reverse DC Rectifier
  • Input Voltage
    342VAC~418VAC,Three Phase.
  • Output Voltage
    400VDC
  • Output Current
    200A
  • Effiency
    >93%
  • Output Ripple
    <±0.5%;customized
  • Voltage/current Accuracy
    ≤±0.5﹪(20%~100%rated Output Current,customized)
  • Alarms And Status
    CAN Bus Reported /LCD Display And LED Indicated
  • Place of Origin
    China
  • Brand Name
    IMAX POWER
  • Certification
    Meet CE
  • Model Number
    IPMA-400/200
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden box packed
  • Delivery Time
    2~5 Weeks
  • Payment Terms
    T/T
  • Supply Ability
    1000PCS/Month

400VDC Pulse Reverse Power Supply 342VAC High Frequency 3 Phase DC Rectifier

400VDC Three Phase AC To DC Rectifier High Frequency DC rectifier High Frequency Pulse And Pulse Reverse 400VDC

Description
IPMA series is a line of high frequency pulse rectifiers designed to meet all galvanic surface treatment requirements. Based on high speed IGBT technology, they provide high efficiency and performance. Supported 342VAC to 418VAC three-phase voltage input, output voltage and current can be customized, Low Ripple,IMAX rectifiers adopt pulse width modulation (PWM) technique for the controlling of current amplitude and adopt full digital design, using TI 12-bit DSP control.

Model name
I  P  M  A400 /200
1 2  3   4     5     6
1-  I means "IMAX"
2-  Pulse output
3-  module
4-  Air cooled
5- 400V Rated output Voltage
6- 200A Rated output current

FEATURES

Electrical features

Ø Input:342VAC~418VAC,Three phase input.

Ø DSP control,Output current,High voltage accuracy
       Ø Modular design with flexible DC outputs in the efficient switch mode technology.
       Ø Power Supplies available as air or water cooled models
       Ø Supports CAN bus /RS485 communication
       Ø Support constant voltage, constant current mode, and can be freely switched
       Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection
       Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.
       Ø All input/output connections in the back for easy access

Ø Cooling systems :Air cooled system


Energy saving & high accuracy

Ø High speed IGBT technology

Ø Modular power platform and multi-tower interconnection

Ø Microprocessor controlled342VAC~418VAC,Three phase input.

Software features

Ø Simple output parameters and waveform programming from the operator panel, remote control or

Ø PC/PLC (current, voltage, cycle time and ramp time)

Ø Customized software available

Ø High precision voltage and current regulation (1000 steps)

Ø Allows you to customize the output soft start time and working time

Ø A/h and A/min meters for precise thickness and dosing pumps control

Ø Operation Modes Manual (Through operator panel or remote control) Automatic (Via PC or PLC)


Available Interfaces

> RS485 *

> RS232 *

> Profibus-DP

> Device Net

> Analogue 0-10V

> Analogue 4-20mA


Typical Parameters:

Output voltageOutput currentDimension(mm)
0~25V0~4000A450*486*(customized)
0~60V0~1000A450*486*(customized)
0~40V0~2000A450*486*(customized)
0~100V0~1000A450*486*(customized)
0~600V0~500A450*486*(customized)
0~300V0~4000A450*486*(customized)


Specifications:

InputVoltageAC380Vac±10%
Frequency45~66Hz
Input current≤26A
OutputRated DC voltage400V,Customized
Rated DC current200A,Customized
Output voltage range0~400V
Efficiency(MAX)>93%
others

voltage/current
Accuracy

≤±0.5﹪(20%~100%rated output current,customized)
Temperature coefficient≤0.05%/℃
Output Ripple<±0.5%;customized
Isolated&withstand voltage2000Vac50HZ/1minInput-output/input-G/output-G
ProtectionInput under voltage/over voltage330(±5) V/(425±5) V shut down, Free adjustable.
Output over voltage protection pointFree adjustable
Output current limiting protectionFree adjustable
over-temperature protectionTemp. Of goes up >80℃,shut down.
Communication alarmC communication protocolCAN/RS485
Alarms and StatusCAN Bus Reported /LCD display and LED indicated
physical characteristicsOperation environmentIndoor
Cooling methodIntelligent air cooling ≤65dB
Dimension(W*D*H)450mm*486mm*(Height depended by the output Power)
Net weight per moduleTBD



Output waveform:
400VDC Pulse Reverse Power Supply 342VAC High Frequency 3 Phase DC Rectifier 0


Vo: DC output voltage.
t1: Soft start time
T2:Working time
You can set them as required.
