450VDC Pulse Reverse Power Supply High Frequency DC Rectifier Pulse And Pulse Reverse

450VDC Pulse Reverse Power Supply High Frequency DC Rectifier Pulse And Pulse Reverse

  • High Light

    Pulse Reverse Power Supply High Frequency

    ,

    450VDC Pulse Reverse Power Supply

  • Product Name

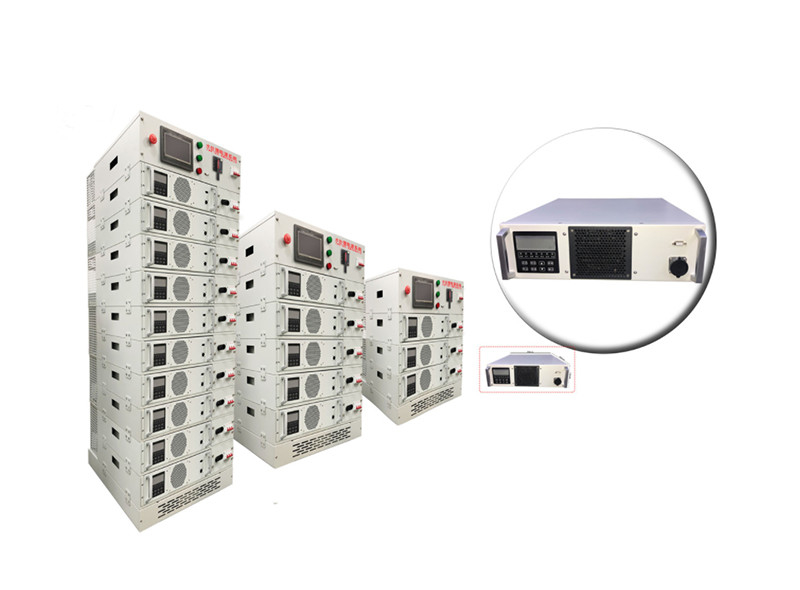

    IPMA-450/500 High Frequency Pulse And Pulse Reverse DC Rectifier
  • Input Voltage
    342VAC~418VAC,Three Phase.
  • Output Voltage
    450VDC
  • Output Current
    500A
  • Output Frequency
    45~66HZ
  • Effiency
    >92%
  • Output Ripple
    <±0.5%;customized
  • Place of Origin
    China
  • Brand Name
    IMAX POWER
  • Certification
    CE, ISO19001&ISO14001
  • Model Number
    IPMA-450/500
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden box packed
  • Delivery Time
    2~5 Weeks
  • Payment Terms
    T/T
  • Supply Ability
    1000PCS/Month

450VDC Pulse Reverse Power Supply High Frequency DC Rectifier Pulse And Pulse Reverse

DC rectifier High Frequency Pulse And Pulse Reverse 450VDC

Description
IPMA series is a line of high frequency pulse rectifiers designed to meet all galvanic surface treatment requirements. Based on high speed IGBT technology, they provide high efficiency and performance. Supported 342VAC to 418VAC three-phase voltage input, output voltage and current can be customized, Low Ripple,IMAX rectifiers adopt PWM technique for the controlling of current amplitude and adopt full digital design, using TI 12-bit DSP control.


Application
1.Surface Oxidation Treatment
2.Etching surface Treatment.
3.Metal smelting: Aluminum,Copper, Zine, Lead,Manganese,Magnesium,etc
4.Ionic membrane: Electrolysis of salt,etc
5.Silicon carbide smelting & Graphitization furnace
6.Experimental power supply
7.Copper foil, aluminum foil special power supply
8.Electrochemical: Chlor-alkali, etc
9.Electrolysis: Copper,Zine,Tin,Lead,Aluminum foil,Copper foil


Model name
I  P  M  A450 /500
1 2  3   4     5     6
1-  I means "IMAX"
2-  Pulse output
3-  module
4-  Air cooled
5- 450V Rated output Voltage
6- 500A Rated output current

FEATURES

Electrical features
Ø Input:342VAC~418VAC,Three phase input.
Ø DSP control,Output current,High voltage accuracy
Ø Modular design with flexible DC outputs in the efficient switch mode technology.
Ø Power Supplies available as air or water cooled models
Ø Supports CAN bus /RS485 communication
Ø Support constant voltage, constant current mode, and can be freely switched
Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection
Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.
Ø All input/output connections in the back for easy access
Ø Cooling systems :Air cooled system


Energy saving & high accuracy
Ø High speed IGBT technology
Ø Modular power platform and multi-tower interconnection
Ø Microprocessor controlled342VAC~418VAC,Three phase input.

Software features
Ø Simple output parameters and waveform programming from the operator panel, remote control or
Ø PC/PLC (current, voltage, cycle time and ramp time)
Ø Customized software available
Ø High precision voltage and current regulation (1000 steps)
Ø Allows you to customize the output soft start time and working time
Ø A/h and A/min meters for precise thickness and dosing pumps control
Ø Operation Modes Manual (Through operator panel or remote control) Automatic (Via PC or PLC)


Available Interfaces
> RS485 *
> RS232 *
> Profibus-DP
> Device Net
> Analogue 0-10V
> Analogue 4-20mA


Specifications:

InputVoltageAC380Vac±10%
Frequency45~66Hz
Input current≤26A
OutputRated DC voltage450V,Customized
Rated DC current500A,Customized
Output voltage range0~450V
Efficiency(MAX)>93%
others

voltage/current
Accuracy

≤±0.5﹪(20%~100%rated output current,customized)
Temperature coefficient≤0.05%/℃
Output Ripple<±0.5%;customized
Isolated&withstand voltage2000Vac50HZ/1minInput-output/input-G/output-G
ProtectionInput under voltage/over voltage330(±5) V/(425±5) V shut down, Free adjustable.
Output over voltage protection pointFree adjustable
Output current limiting protectionFree adjustable
over-temperature protectionTemp. Of goes up >80℃,shut down.
Communication alarmC communication protocolCAN/RS485
Alarms and StatusCAN Bus Reported /LCD display and LED indicated
physical characteristicsOperation environmentIndoor
Cooling methodIntelligent air cooling ≤65dB
Dimension(W*D*H)450mm*486mm*(Height depended by the output Power)
Net weight per moduleTBD



Output waveform:
450VDC Pulse Reverse Power Supply High Frequency DC Rectifier Pulse And Pulse Reverse 0


Vo: DC output voltage.
t1: Soft start time
T2:Working time
You can set them as required.
