800VDC Three Phase AC To DC Rectifier High Frequency DC rectifier RS485 Pulse And Pulse Reverse
Description

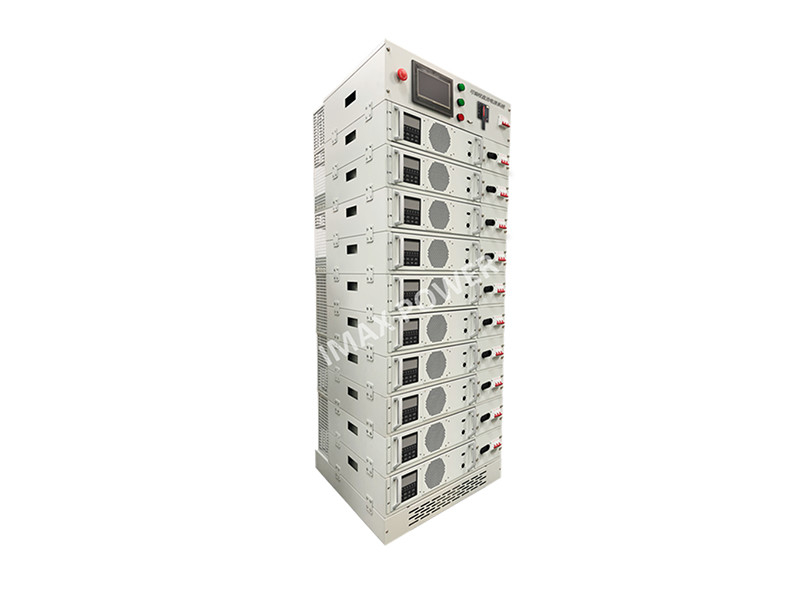

IPMA series is a line of high frequency pulse rectifiers designed to meet all galvanic surface treatment requirements.
Based on high speed IGBT technology, they provide high efficiency and performance. Supported 380Vac 3 phase voltage input.
Output voltage and current can be customized, Low Ripple,IMAX rectifiers adopt pulse width modulation (PWM) technique for the controlling of current amplitude and adopt full digital design, using TI 12-bit DSP control.
Application
1.Plating: Chrome,Zine,Nickel,Copper,Gold,Silver
2.Metal smelting: Aluminum,Copper, Zine, Lead,Manganese,Magnesium,etc
3.Ionic membrane: Electrolysis of salt,etc
4.Silicon carbide smelting & Graphitization furnace
5.Experimental power supply
6.Copper foil, aluminum foil special power supply
Model name
I P M A– 800 /400
1 2 3 4 5 6
1- I means "IMAX"
2- Pulse output
3- module
4- Air cooled
5- 800V Rated output Voltage
6- 400A Rated output current
FEATURES
Electrical features
Ø Input:342VAC~418VAC,Three phase input.
Ø DSP control,Output current,High voltage accuracy
Ø Modular design with flexible DC outputs in the efficient switch mode technology.
Ø Power Supplies available as air or water cooled models
Ø Supports CAN bus /RS485 communication
Ø Support constant voltage, constant current mode, and can be freely switched
Ø Supports input over voltage/under voltage protection, phase-loss protection, and input three-phase unbalanced protection
Ø Our rectifiers can live in a tough world, Independent air duct design, Unique Anti-corrosion Design, improve the product life cycle, high reliability.
Ø All input/output connections in the back for easy access
Ø Cooling systems :Air cooled system
Energy saving & high accuracy
Ø High speed IGBT technology
Ø Modular power platform and multi-tower interconnection
Ø Microprocessor controlled342VAC~418VAC,Three phase input.
Software features
Ø Simple output parameters and waveform programming from the operator panel, remote control or
Ø PC/PLC (current, voltage, cycle time and ramp time)
Ø Customized software available
Ø High precision voltage and current regulation (1000 steps)
Ø Allows you to customize the output soft start time and working time
Ø A/h and A/min meters for precise thickness and dosing pumps control
Ø Operation Modes Manual (Through operator panel or remote control) Automatic (Via PC or PLC)
Available Interfaces
> RS485 *
> RS232 *
> Profibus-DP
> Device Net
> Analogue 0-10V
> Analogue 4-20mA
Specifications
| Input | Voltage | AC380Vac±10% |
| Frequency | 45~66Hz | |
| Input current | ≤26A | |
| Output | Rated DC voltage | 800V,Customized |
| Rated DC current | 400A,Customized | |
| Output voltage range | 0~800V | |
| Efficiency(MAX) | ＞93% | |
| others |
voltage/current Accuracy |
≤±0.5﹪(20%~100%rated output current,customized) |
| Temperature coefficient | ≤0.05％/℃ | |
| Output Ripple | ＜±0.5%；customized | |
| Isolated&withstand voltage | 2000Vac50HZ/1minInput-output/input-G/output-G | |
| Protection | Input under voltage/over voltage | 330(±5) V/(425±5) V shut down, Free adjustable. |
| Output over voltage protection point | Free adjustable | |
| Output current limiting protection | Free adjustable | |
| over-temperature protection | Temp. Of goes up ＞80℃,shut down. | |
| Communication alarm | C communication protocol | CAN/RS485 |
| Alarms and Status | CAN Bus Reported /LCD display and LED indicated | |
| physical characteristics | Operation environment | Indoor |
| Cooling method | Intelligent air cooling ≤65dB | |
| Dimension(W*D*H) | 450mm*486mm*(Height depended by the output Power) | |
| Net weight per module | TBD |
Output waveform:
Vo: DC output voltage.
t1: Soft start time
T2:Working time
You can set them as required.
Why Choose US
1. We offer one-stop power supply solutions, which saves design time and cost for customer:
-- Hardware design / Software design/ External housing design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% Burn-in test
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power supplies solution consultant:
-- Test Center (Safety and Reliable test)
-- Support Customized Design service.
DC rectifier High Frequency Pulse And Pulse Reverse 800VDC
800VDC Three Phase DC Rectifier High Frequency DC rectifier High Frequency Pulse And Pulse Reverse
Our products are sold all over the world, you can rest assured.
