| Rated Power 200W |
Input | 180V-265VAC(47Hz-63Hz) 4A Max | |||
| Output | Load Range | Voltage | Ripple & Noise | ||
| Min | Max | ||||
| +5V | 0.5A | 10A | ±5% | ≤50mV | |
| +12V | 1A | 14A | ±5% | ≤120mV | |
| +5VSB | 0A | 2A | ±5% | ≤50mV | |
| +3.3V | 0.5A | 6A | ±5% | ≤50mV | |
| -12V | 0A | 0.3A | ±10% | ≤200mV | |
| Not exceeding 60W if combines +3.3V and 5V together | |||||
| Standby Power Consumption | ≤3W | ||||
| Protective Function | Overvoltage protection, over power protection, short circuit protection, | ||||
| Working Environment | Air Temperature:5~40℃,Relative Humidity:5%~95% without condensation | ||||
| Storage Environment | Air Temperature:-40~70℃,Relative Humidity:5%~95% | ||||
| EMI | Conform EN55022 Class B GB9254 Class B | ||||
| Earth Leakage Current | ≤3.5mA(264VAC/50Hz) | ||||
| MTBF Value | ≥100K hours.MIL-HDBK-217F(25℃) | ||||
| Cooling Method | Forced cooling and fan cooling method | ||||
| Package Method | 10PCS/Per Case | ||||

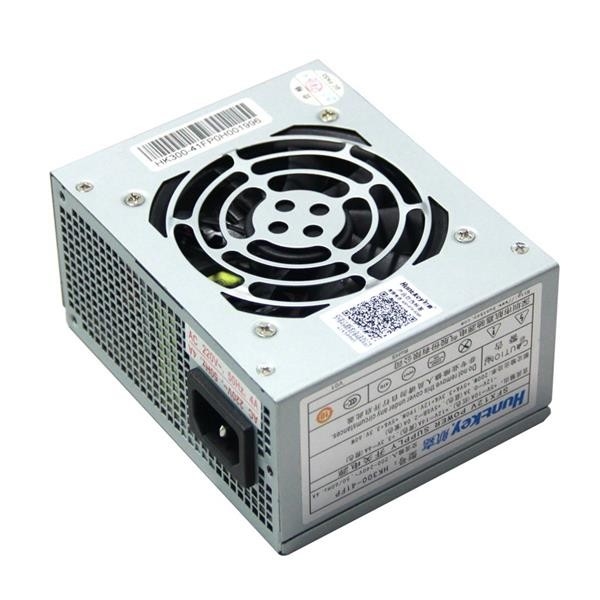

| Typical Dimensions(mm) | 100(L)×125(W)×63.5(H) | ||||
| Design Standards | Conform Intel SFX 12V V3.1 standards | ||||
| Application | game machines, multimedia devices, mini case, etc. | ||||
