30W Ac DC Din rail power supply industrial control power supply
Descriptions

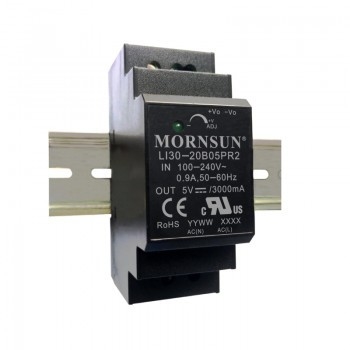

LI30-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.
The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32,EN55032,UL62368,IEC62368 and EN62368.
These light weight AC-DCconverters also have an extremely compact design for space saving
Applications
Widely used in industrial control equipment machinery and all kinds of applications in a harsh environment.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range(V)* | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF) Max. |
|
UL/EN/IEC |
LI30-20B05PR2 | 15 | 5V/3A | 4.9-5.5 | 82 | 12000 |
| LI30-20B12PR2 | 24 | 12V/2A | 10.8-13.8 | 88 | 6000 | |
| LI30-20B15PR2 | 30 | 15V/2A | 13.5-18.0 | 89 | 5000 | |
| LI30-20B24PR2 | 36 | 24V/1.5A | 21.6-29.0 | 88 | 1400 | |
| LI30-20B48PR2 | 36 | 48V/0.75A | 43.2-55.2 | 90 | 600 | |
| Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 120 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
|
Input Current |
115VAC | -- | -- | 0.9 |
A |
| 230VAC | -- | -- | 0.5 | ||
|
Inrush Current |
115VAC | -- | 25 | -- | |
| 230VAC | -- | 45 | -- | ||
| Leakage Current | 264VAC | 0.25mA RMS max. | |||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | 0% - 100% load | -- | ±2 | -- |
% |
|
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 230VAC | -- | ±1.5 | -- | ||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) |
5V Output | -- | -- | 80 |
mV |
| 12V Output | -- | -- | 120 | |||
| 15V Output | -- | -- | 120 | |||
| 24V Output | -- | -- | 150 | |||
| 48V Output | -- | -- | 240 | |||
| Temperature Coefficient | -- | ±0.02 | -- | %/°C | |
| Short Circuit Protection | Hiccup, continuous, self-recovery | ||||
| Over-current Protection | ≥120 % Io, self-recovery | ||||
|
Over-voltage Protection |
5V Output | ≤7.5V (Output voltage clamp or hiccup) | |||
| 12V Output | ≤16V (Output voltage clamp or hiccup) | ||||
| 15V Output | ≤20V (Output voltage clamp or hiccup) | ||||
| 24V Output | ≤36V (Output voltage clamp or hiccup) | ||||
| 48V Output | ≤60V (Output voltage clamp or hiccup) | ||||
| Minimum Load | 0 | -- | -- | % | |
| Start-up Time | -- | -- | 3 | s | |
|
Hold-up Time |
115VAC | -- | 12 | -- | ms |
| 230VAC | -- | 60 | -- | ||
| Note: * The “parallel cable” method is used for ripple and noise test, please refer to AC-DC Converter Application Notes for specific information. | |||||
| Mechanical Specifications | |
| Case Material | Plastic, heat-resistant (UL94V-0) |
| Package Dimensions | 92.66 x 35.00 x 58.00 mm |
| Weight | 115g (Typ.) |
| Cooling method | Free air convection |
