60W Ac DC Din rail power supply industrial control power supply
Descriptions

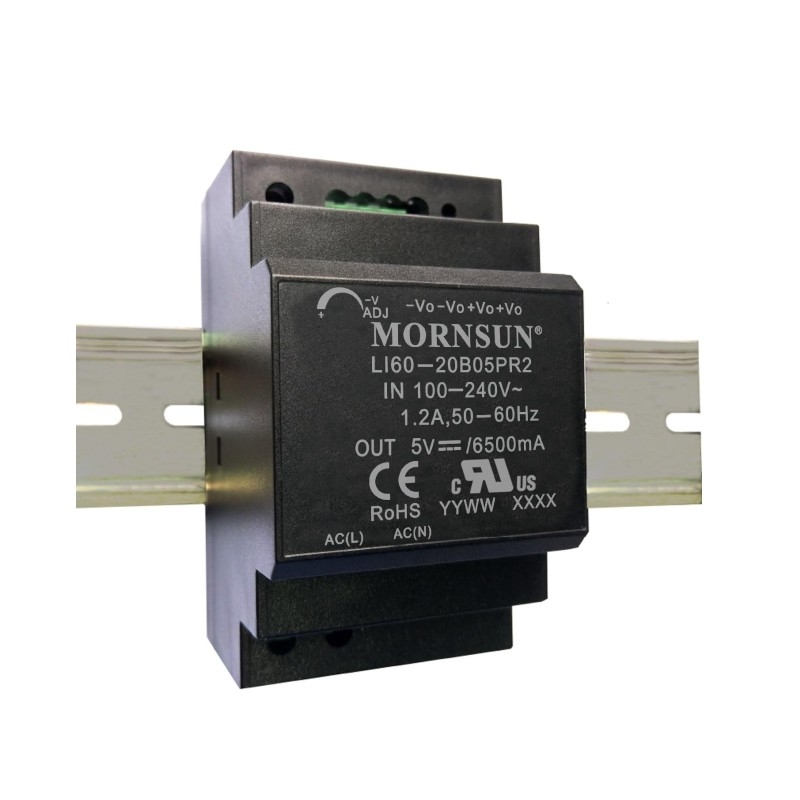

LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.
The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32,EN55032,UL62368,IEC62368 and EN62368.
These light weight AC-DCconverters also have an extremely compact design for space saving.
Applications
Widely used in industrial control equipment machinery and all kinds of applications in a harsh environment.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range(V)* | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF)Max. |
|
UL/EN/IEC |
LI60-20B05PR2 | 32.5 | 5V/6.5A | 4.9-5.5 | 84 | 20000 |
| LI60-20B12PR2 | 54 | 12V/4.5A | 10.8-13.8 | 88 | 10000 | |
| LI60-20B15PR2 | 60 | 15V/4.0A | 13.5-18.0 | 89 | 8000 | |
| LI60-20B24PR2 | 60 | 24V/2.5A | 21.6-29.0 | 90 | 4000 | |
| LI60-20B48PR2 | 60 | 48V/1.25A | 43.2-55.2 | 91 | 680 | |
| Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 120 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
|
Input Current |
115VAC | -- | -- | 1.2 |
A |
| 230VAC | -- | -- | 0.8 | ||
|
Inrush Current |
115VAC | -- | 30 | -- | |
| 230VAC | -- | 60 | -- | ||
| Leakage Current | 264VAC | 0.25mA RMS max. | |||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | 0% - 100% load | -- | ±2 | -- |
% |
|
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 230VAC | -- | ±1.5 | -- | ||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) |
5V Output | -- | -- | 100 |
mV |
| 12V Output | -- | -- | 120 | |||
| 15V Output | -- | -- | 120 | |||
| 24V Output | -- | -- | 150 | |||
| 48V Output | -- | -- | 240 | |||
| Temperature Coefficient | -- | ±0.02 | -- | %/°C | ||
|
Stand-by Power Consumption |
230VAC input | 5V/12V/15V/24V Output | -- | -- | 0.3 | W |
| 48V Output | -- | -- | 0.4 | |||
| Short Circuit Protection | Hiccup, continuous, self-recovery | |||||
| Over-current Protection | ≥120%Io, self-recovery | |||||
|
Over-voltage Protection |
5V Output | ≤7.5V (Output voltage clamp or hiccup) | ||||
| 12V Output | ≤16V (Output voltage clamp or hiccup) | |||||
| 15V Output | ≤20V (Output voltage clamp or hiccup) | |||||
| 24V Output | ≤36V (Output voltage clamp or hiccup) | |||||
| 48V Output | ≤60V (Output voltage clamp or hiccup) | |||||
| Minimum Load | 0 | -- | -- | % | ||
| Start-up Delay Time | -- | -- | 3 | s | ||
|
Hold-up Time |
115VAC | -- | 15 | -- | ms | |
| 230VAC | -- | 80 | -- | |||
| Note: * Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | ||||||
| Mechanical Specifications | |
| Case Material | Plastic, heat-resistant (UL94V-0) |
| Package Dimensions | 92.66 x 52.00 x 58.00 mm |
| Weight | 175g (Typ.) |
| Cooling method | Free air convection |
