240W AC DC Din Rail Power Supply Industrial Control Power Supply
Descriptions

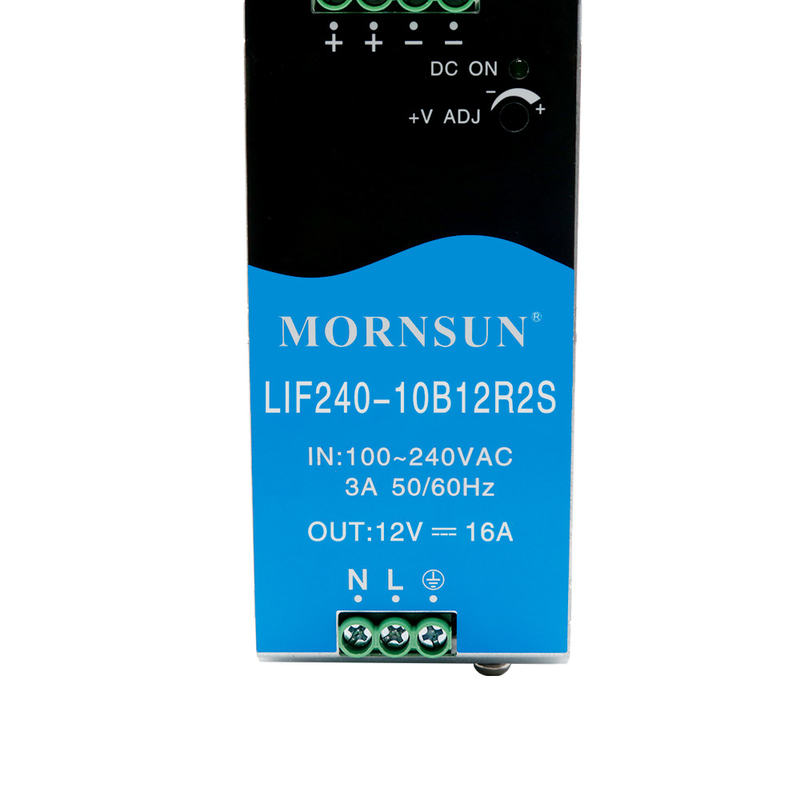

LIF240-10BxxR2S is Mornsun AC-DC converter series featuring a cost-effective,energy efficient green power supply solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise for industrial control equipment,machinery,and other industrial equipment in a variety of harsh environments.These light weight AC-DC converters have an extremely compact design and the standard rail installation for spaces aving. With good EMC performance, compliant with international IEC/EN/UL62368, UL61010, UL508 standards for EMC and safety.
Features
Universal 85 - 264VAC or 120 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +70℃
High efficiency, high reliability
Built-in active PFC function
150% peak load output for 3 seconds
LED indicator for power on
Output short circuit, over-current, over-voltage, over-temperature protection
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range (V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) |
|
UL/EN (Pending) |
LIF240-10B12R2S | 192 | 12V/16A | 12.0-14.0 | 93 | 160,000 |
| LIF240-10B24R2S | 240 | 24V/10A | 24.0-28.0 | 94 | 40,000 | |
| LIF240-10B48R2S | 48V/5A | 48.0-53.0 | 10,000 | |||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Voltage Range |
Rated input (Certified voltage) | 100 | -- | 240 | VAC | |
| AC input | 85 | -- | 264 | VAC | ||
| DC input | 120 | -- | 370 | VDC | ||
| Input Voltage Frequency | 47 | -- | 63 | Hz | ||
| Input Current | 115VAC | -- | -- | 3 |
A |
|
| 230VAC | -- | -- | 1.5 | |||
| Inrush Current | 115VAC | Cold start | -- | 15 | -- | |
| 230VAC | -- | 30 | -- | |||
| Power Factor | 115VAC | -- | 0.98 | -- | -- | |
| 230VAC | -- | 0.95 | -- | |||
| Leakage Current | 264VAC | Input - output | ＜0.5mA | |||
Input -  |
＜1mA | |||||
| Hot Plug | Unavailable | |||||
| Mechanical Specifications | |
| Case Material | Metal (AL1100, SPCC) and Plastic (PC945) |

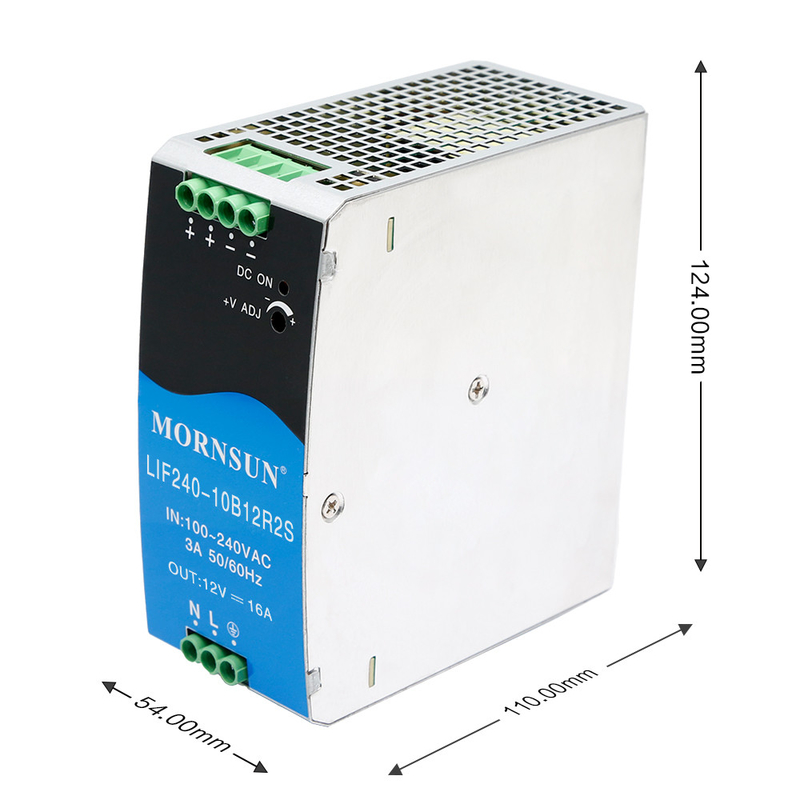

| Dimensions | 124.00 x 54.00 x 110.00mm |
| Weight | 600g (Typ.) |
| Cooling Method | Free air convection |
