120W AC DC Din Rail Power Supply Industrial Control Power Supply
Descriptions

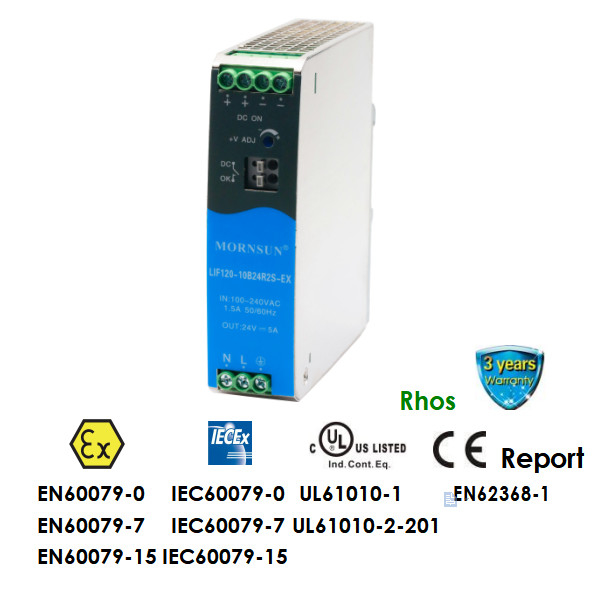

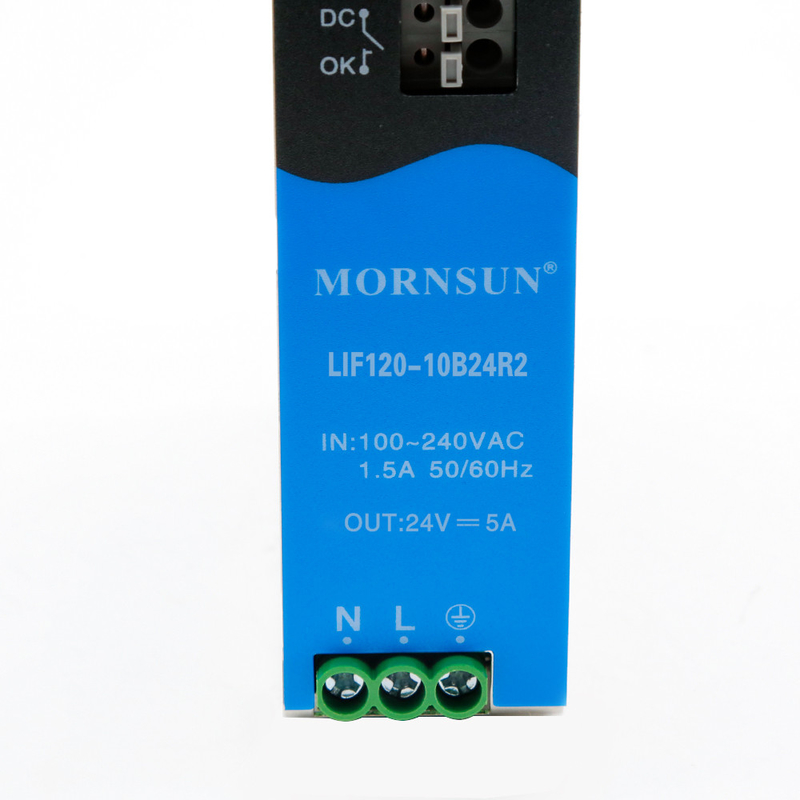

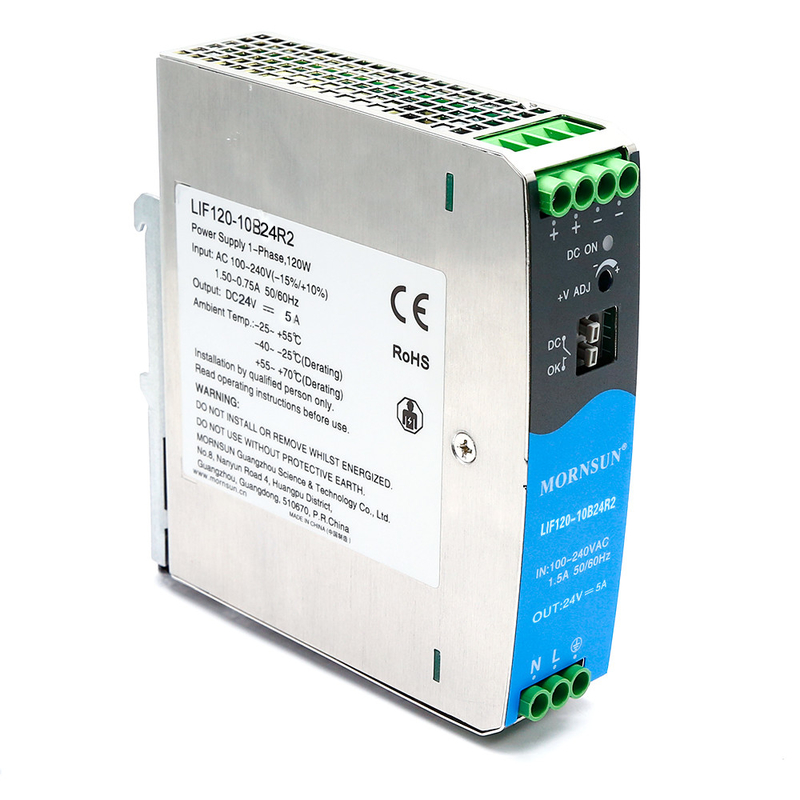

LIF120-10BxxR2S-EX is Mornsun AC-DC converter series featuring a cost-effective, energy efficient explosion-proof solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN/UL62368,IEC/EN60079, UL61010.These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment, machinery, and all kinds of applications in a harsh environments.The power supply meets the ’ec’ increased safety and ’nC’ enclosed-break type n explosion-proof certification,and is suitable for explosive environments where the equipment protection level is Gc in zone 2.
Features
Universal 85 - 264VAC or 120 - 370 VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +85℃
High efficiency, high reliability
DC OK function
DC ON output status indicator LED
Active PFC
Output short circuit, over-current, over-voltage, over-temperature protection
ATEX, IECEx increased safety type explosion-proof certification approved
Operating altitude up to 5000m
OVCⅡ
Indoor use
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range (V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) |
ATEX/IECEx/ UL/EN | LIF120-10B12R2S-EX |
120 | 12V/10A | 11.8-14.0 | 92 | 80,000 |
| LIF120-10B24R2S-EX | 24V/5A | 23.5-28.0 | 93 | 50,000 | ||
| LIF120-10B48R2S-EX | 48V/2.5A | 47.0-53.0 | 93.5 | 30,000 | ||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
Input Voltage Range | Rated input (Certified voltage) | 100 | -- | 240 |
VAC |
| AC input | 85 | -- | 264 | ||
| DC input | 120 | -- | 370 | VDC | |
Input Frequency | Rated AC input | 50 | -- | 60 |
Hz |
| AC input | 47 | -- | 63 | ||
Input Current | Rated Input | -- | -- | 1.5 | A |
| 115VAC | -- | -- | 1.5 | ||
| 230VAC | -- | -- | 0.75 | ||
Inrush Current | 115VAC | -- | 10 | 15 | |
| 230VAC | -- | 20 | 30 | ||
| Leakage Current | 240VAC | ＜1mA | |||
Power Factor | 115VAC | -- | 0.98 | -- |
-- |
| 230VAC | -- | 0.94 | -- | ||
| Start-up Delay Time | 230VAC | -- | 300 | 1000 | ms |
| Hot Plug | Unavailable | ||||
| General Specifications | |
| Case Material | Metal (AL5052, SPCC, SGCC) and Plastic (PA66) |
| Dimensions | 110.00 x 32.00 x 124.00 mm |
| Weight | 500g (Typ.) |
| Cooling Method | Free air convection |
