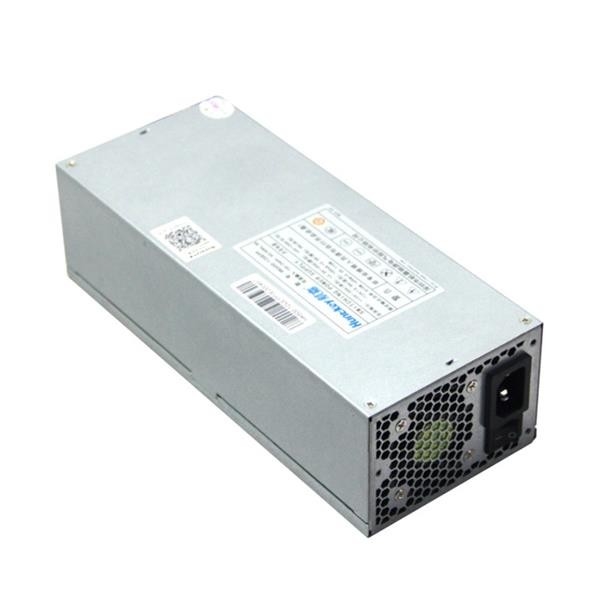

| Model HK710-12UEPP |
Rated Power | 610W | |||
| Input | 90V-265VAC(47Hz-63Hz) 10A Max | ||||
| Output | Load Range | Voltage | Ripple & Noise | ||
| Min | Max | ||||
| +5V | 0.5A | 20A | ±5% | ≤50mV | |
| +12V | 0A | 48A | ±5% | ≤120mV | |
| +5VSB | 0.1A | 2A | ±5% | ≤50mV | |
| +3.3V | 0.8A | 20A | ±5% | ≤50mV | |
| -12V | 0A | 0.3A | ±10% | ≤120mV | |
| Not exceeding 150W if combines +3.3V and 5V together | |||||
| Standby Power Consumption | ≤1.5W | ||||
| Protective Function | Overvoltage protection, overpower protection, overcurrent protection, short circuit protection | ||||
| Working Environment | Air Temperature:0~50℃,Relative Humidity:5%~95% without condensation | ||||
| Storage Environment | Air Temperature:-40~80℃,Relative Humidity:5%~100% | ||||
| EMI | Conform EN55022 Class B, GB9254 Class B | ||||
| Earth Leakage Current | ≤1.5mA(264VAC/50Hz) | ||||
| MTBF Value | ≥50K hours.Bellcore-TR-332(25℃) | ||||
| Cooling Method | Forced cooling and fan cooling method | ||||
| Package Method | 80PCS/Per Case | ||||
| Typical Dimensions(mm) | 240(L)×100(W)×70(H) | ||||
| Design Standards | Comply with SSI EPS 2.1 standard server power specification, 2U structure | ||||
| Application | Network Server, IPC , etc. | ||||
