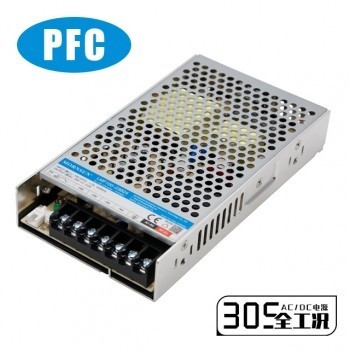

100W Ac Dc Power Supply with PFC function enclosed type power supply
Descriptions
LMF100-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,built-inactive PFC function,high efficiency and high reliability.
These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/UL/EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.
Features
Specifications
| Selection Guide | ||||||
|
Certification |
Part No.* |
Output Power( W) |
Nominal Output Voltage and Current (Vo/Io) |
Output Voltage Adjustable Range(V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (uF) |
|
UL/CE/CCC/ CB |
LMF100-23B12 | 102 | 12V/8.5A | 11.4-13.8 | 85 | 5000 |
| LMF100-23B15 | 100.5 | 15V/6.7A | 14.3-16.5 | 86 | 5000 | |
| LMF100-23B24 | 100.8 | 24V/4.2A | 22.8-27.6 | 86 | 4200 | |
| LMF100-23B48 | 100.8 | 48V/2.1A | 45.6-55.2 | 87 | 2200 | |
| Note:*Use suffix ”C” for terminal with protective cover and suffix ”Q” for conformal coating. | ||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Input Voltage Range | AC input | 85 | -- | 305 | VAC | |
| DC input | 120 | -- | 430 | VDC | ||
| Input Voltage Frequency | 47 | -- | 63 | Hz | ||
|
Input Current |
85VAC | -- | -- | 1.7 |
A |
|
| 115VAC | -- | -- | 1.3 | |||
| 230VAC | -- | -- | 0.7 | |||
|
Inrush Current |
115VAC |
Cold start |
-- | 25 | -- | |
| 230VAC | -- | 45 | -- | |||
| Power Factor | 115VAC | At full load | 0.97 | 0.98 | -- | -- |
| 230VAC | 0.92 | 0.93 | -- | |||
| Leakage Current | 277VAC | ＜2mA | ||||
| Hot Plug | Unavailable | |||||
| Output Specifications | ||||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |||
| Output Voltage Accuracy | Full load range | 12V/15V | -- | ±2 | -- |
% |
||
| 24V/48V | -- | ±1 | -- | |||||
| Line Regulation | Rated load | -- | ±0.5 | -- | ||||
| Load Regulation | 0% - 100% load | 12V/15V/24V/48V | -- | ±0.5 | -- | |||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) | 12V/15V | -- | -- | 100 |
mV |
||
| 24V | -- | -- | 150 | |||||
| 48V | -- | -- | 250 | |||||
| Temperature Coefficient | -- | ±0.05 | -- | %/℃ | ||||
| Minimum Load | 0 | -- | -- | % | ||||
| Hold-up Time | 230VAC | 16 | -- | -- | ms | |||
| Stand-by Power Consumption | 230VAC | 12V/15V/24V | -- | -- | 2.0 | W | ||
| 48V | -- | -- | 2.5 | |||||
| Short Circuit Protection | Recovery time <3s after the short circuit disappear. | Constant current, continuous, self-recovery | ||||||
| Over-current Protection | 105%-150% Io, constant current, self-recovery | |||||||
|
Over-voltage Protection |
12V | ≤16.8V (Output voltage hiccup) | ||||||
| 15V | ≤20.25V (Output voltage hiccup) | |||||||
| 24V | ≤32.4V (Output voltage hiccup) | |||||||
| 48V | ≤60V (Output voltage hiccup) | |||||||
| Over-temperature Protection* | Hiccup, self-recovery | |||||||
| Remote Control (CN1) | 0-0.8VDC(Or Floating) Power ON | 0 | -- | 0.8 | VDC | |||
| 4-10VDC Power OFF | 4 | -- | 10 | |||||
|
Note:1. *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information. 2. *Over-temperature Protection needs to be tested under rated full load conditions. |
||||||||
| General Specifications | ||||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |||
|
Isolation |
Input - |
Electric Strength Test for 1min., leakage current <10mA | 2000 | -- | -- |
VAC |
||
| Input-output | Electric Strength Test for 1min., leakage current <10mA | 4000 | -- | -- | ||||
| output - | Electric Strength Test for 1min., leakage current <5mA | 500 | -- | -- | ||||
|
Insulation Resistance |
Input - |
Environment Temperature:25±5℃, Relative Humidity:< 95%RH, non-condensing Testing Voltage:500VDC |
100 | -- | -- |
MΩ |
||
| Input - output | 100 | -- | -- | |||||
| output - | 100 | -- | -- | |||||
| Operating Temperature | -30 | -- | +70 |
℃ |
||||
| Storage Temperature | -40 | -- | +85 | |||||
| Storage Humidity | Non-condensing | 10 | -- | 95 |
%RH |
|||
| Operating Humidity | Non-condensing | 20 | -- | 90 | ||||
| Switching Frequency | -- | 65 | -- | kHz | ||||
|
Power Derating |
+50℃ to +70℃ | 2 | -- | -- | %/℃ | |||
| 85VAC-100VAC | 1.33 | -- | -- | %/VAC | ||||
| 2000m-5000m | 6.66 | -- | -- | %Km | ||||
| Safety Standard | IEC/EN/UL62368, IEC/EN60335, GB4943, IEC/EN61558 | |||||||
| Safety Certification | IEC/EN/UL62368, GB4943 | |||||||
| Safety Class | CLASS I | |||||||
| MTBF | MIL-HDBK-217F@25℃ | >300,000 h | ||||||
| Mechanical Specifications | |
| Case Material | Metal (AL1100, SGCC) |
| Dimensions | 179.00 × 99.00 × 30.00mm |
| Weight | 460g (Typ.) |
| Cooling Method | Free air convection |
