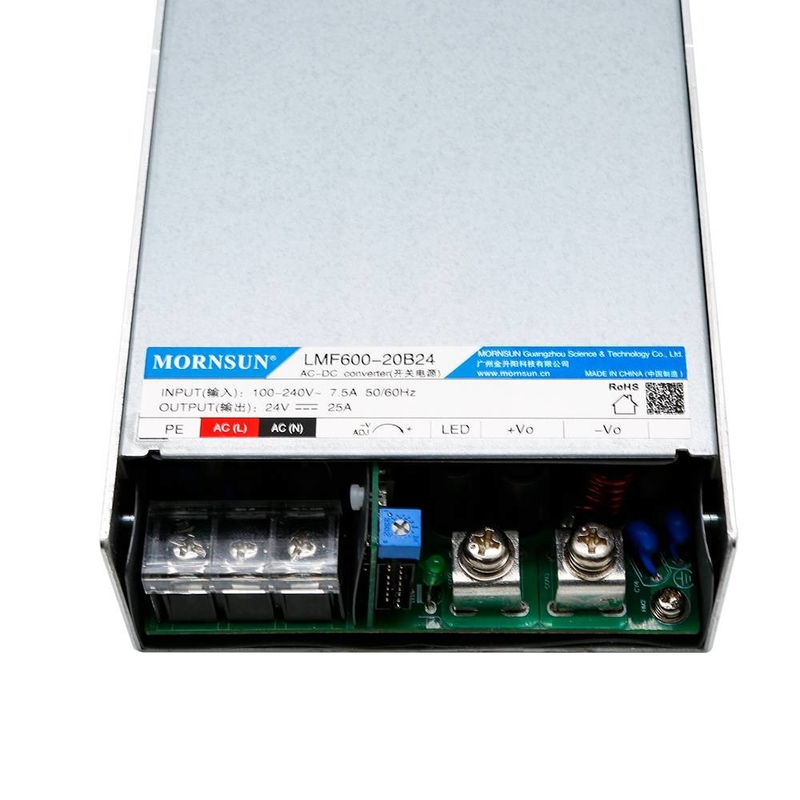

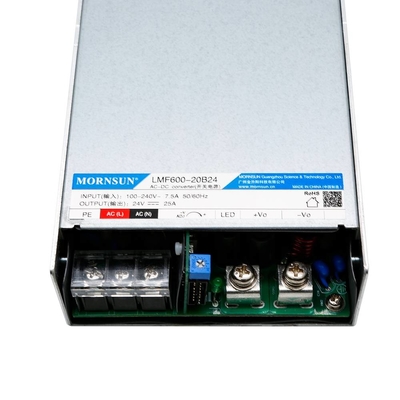

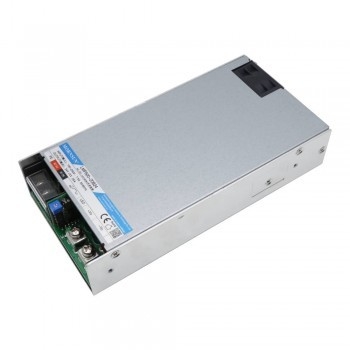

600W /24V Industrial AC DC Enclosed Power Supply with PFC function

600W Ac Dc Power Supply with PFC function enclosed type power supply

Descriptions

LMF600-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption,high efficiency, high reliability and double or reinforced insulation.
These converters offer excellent EMC performance and meet IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.

Features

• Universal 80 - 277VAC or 110- 390VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +70℃
• Low standby power consumption, high efficiency, active PFC
• High I/O isolation test voltage up to 4000VAC
• The base plate with conformal coating
• Output short circuit, over-current, over-voltage over-temperature protection
• Remote sense compensation, remote ON/OFF function
• DC_OK function
• With 5V/1A standby power
• Operating altitude up to 5000m


Specifications
