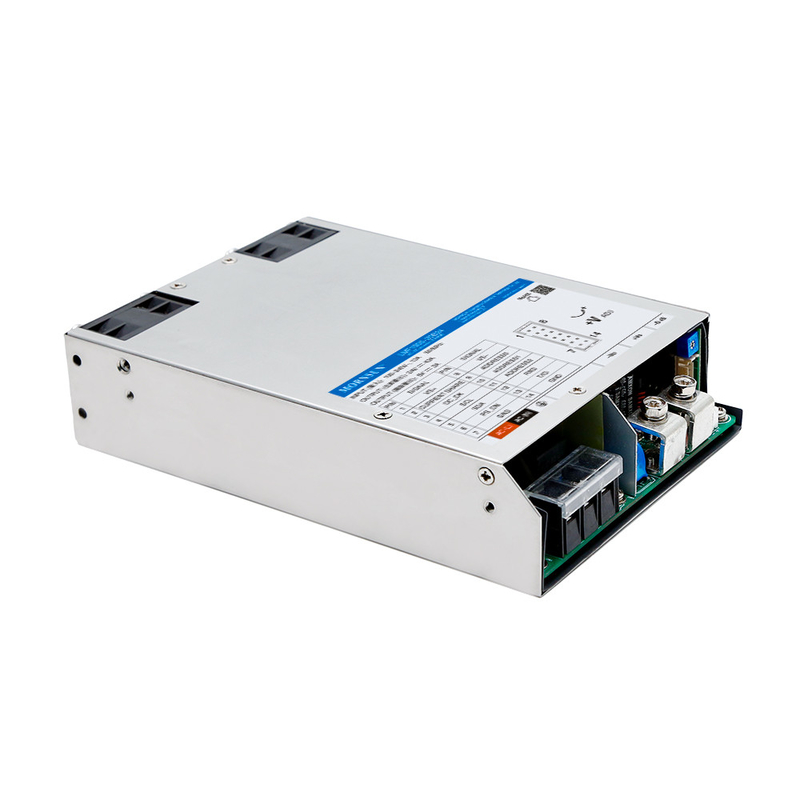

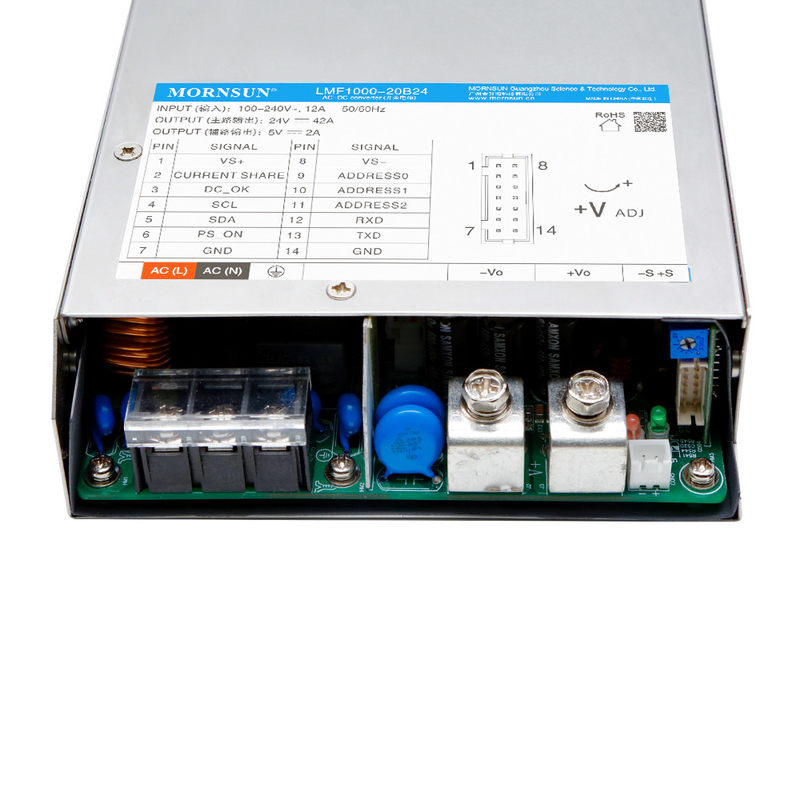

1000W AC DC Power Supply with PFC function enclosed type power supply
Descriptions
LMF1000-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption,high efficiency, high reliability and double or reinforced insulation.
These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications, smart home.etc.
Features
Specifications
| Selection Guide* | |||||||
|
Certification |
Part No.* |
Output Power (W) |
Nominal Output Voltage and Current (Vo/Io) |
Main Output Voltage Adjustable Range ADJ (V) |
Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) | |
|
UL/EN/IEC (Pending) |
LMF1000-20B12 | 960 | Main | 12V/80A | 12-14.4 |
92 |
40000 |
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
|
LMF1000-20B15 |
960 | Main | 15V/64A | 15-18 | 20000 | ||
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
|
LMF1000-20B24 |
1008 | Main | 24V/42A | 24-28.8 |
94 |
10000 | |
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
|
LMF1000-20B27 |
1007 | Main | 27V/37.3A | 27-32.4 | 8000 | ||
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
| LMF1000-20B36 | 1008 | Main | 36V/28.8A | 36-43.2 | 6000 | ||
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
| LMF1000-20B48 | 1008 | Main | 48V/21A | 48-56 | 4000 | ||
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
| LMF1000-20B54 | 1009 | Main | 54V/18.7A | 54-58 | 3000 | ||
| 10 | Auxiliary | 5V/2A | / | 1000 | |||
|
Note:1.*For all applications, please refer to LMF1000-20B (-Q) Series Power Supply Application Notes. 2.*Use suffix“Q”for conformal coating. 3. *Before powering on the product, please confirm whether the control signal connection terminal (CN2) Pin (PS_ON) and Pin (GND) short-circuit jumper cap are connected. If not, the product without output. Please refer to LMF1000-20B (-Q) Series Power Supply Application Notes: 2.10 Remote control. 4. *When using the current sharing function for all models, do not directly increase the load on the system beyond the rated load of a single prototype when the power is turned on for the first time. |
|||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Voltage Range |
AC input | 90 | -- | 264 | VAC | |
| DC input | 120 | -- | 370 | VDC | ||
| Input Voltage Frequency | 47 | -- | 63 | Hz | ||
|
Input Current |
115VAC | -- | -- | 12 |
A |
|
| 230VAC | -- | -- | 6 | |||
| Inrush Current | 115VAC | Cold start | -- | 20 | -- | |
| 230VAC | -- | 40 | -- | |||
| Power Factor | 115VAC | Room-temperature, full load | PF≥0.99 | |||
| 230VAC | PF≥0.95 | |||||
| Contact Leakage Current | 240VAC | ＜0.5mA | ||||
| Mechanical Specifications | |
| Case Material | SUS 304 |
| Dimensions | 190.0 x 127.0 x 40.5 mm |
| Weight | 1.25Kg (Typ.) |
| Cooling Method | Forced cooling |
