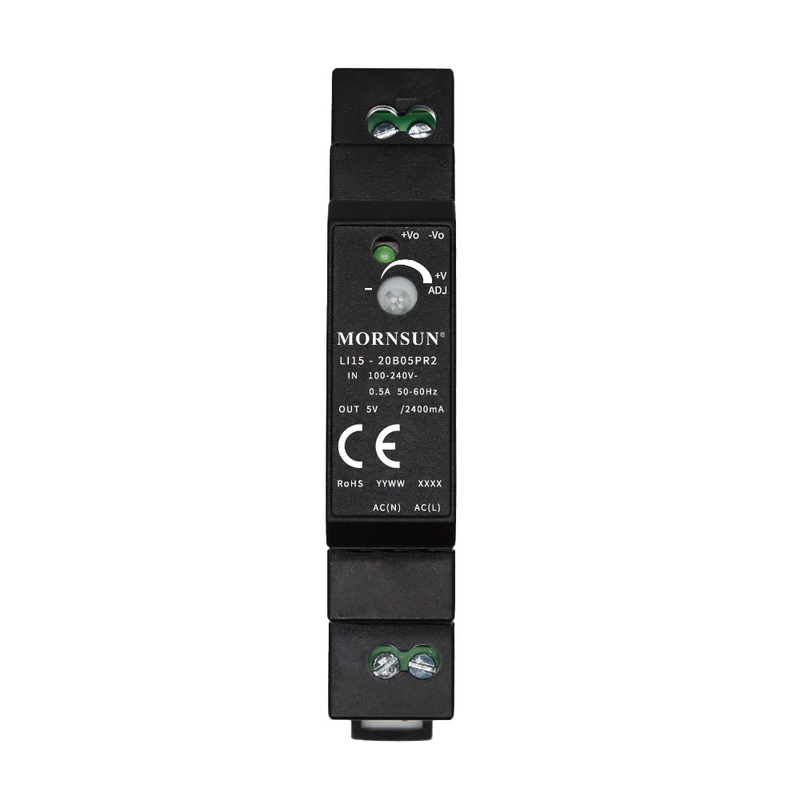

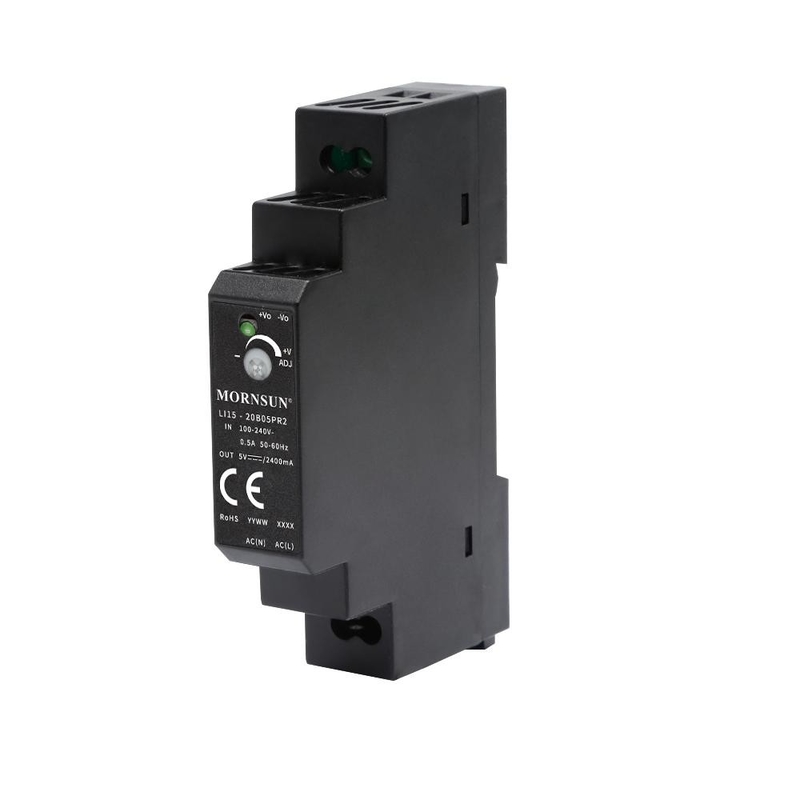

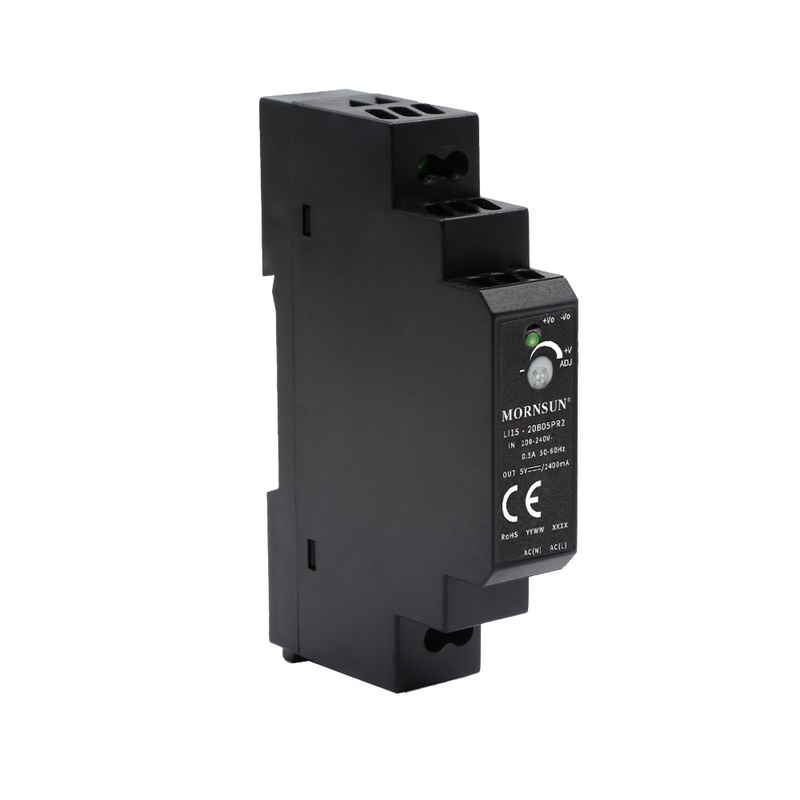

15W AC DC Din Rail Power Supply Industrial Control Power Supply
Descriptions
LI15-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.
The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32/EN55032,UL62368,EN62368,IEC62368,IEC/EN61010,IEC/EN61558 and IEC60335.
These light weight AC-DC Converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range ADJ (V)* | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF) Max. |
EN | LI15-20B05PR2 | 12 | 5V/2.4A | 4.5-5.5 | 80 | 2000 |
| LI15-20B12PR2 | 15 | 12V/1.25A | 10.8-13.8 | 85 | 1500 | |
| LI15-20B15PR2 | 15 | 15V/1A | 13.5-18.0 | 85.5 | 1100 | |
| LI15-20B24PR2 | 15.2 | 24V/0.63A | 21.6-29.0 | 86 | 700 | |
| LI15-20B48PR2 | 15.4 | 48V/0.32A | 43.2-55.2 | 87 | 300 | |
| Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 120 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
Input Current | 115VAC | -- | -- | 0.5 | A |
| 230VAC | -- | -- | 0.25 | ||
Inrush Current | 115VAC | -- | 15 | -- | |
| 230VAC | -- | 25 | -- | ||
| Leakage Current | 240VAC | 0.5mA | |||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
Output Voltage Accuracy | 0% - 100% load | 5V Output | -- | ±2 | -- | % |
| Other output | -- | ±1 | -- | |||
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 230VAC | -- | ±1 | -- | ||
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) | 5V Output | -- | -- | 80 | mV |
| 12V Output | -- | -- | 120 | |||
| 15V Output | -- | -- | 120 | |||
| 24V Output | -- | -- | 150 | |||
| Mechanical Specifications | |
| Case Material | Plastic, heat-resistant (UL94V-0) |
| Package Dimensions | 90.00 x 58.00 x 17.50mm |
| Weight | 60g (Typ.) |
| Cooling method | Free air convection |
