100W AC DC Din Rail Power Supply Industrial Control Power Supply
Descriptions

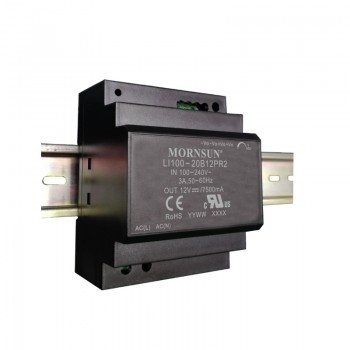

LI100-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective,energy efficient solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety sepecifitions meet IEC/EN61000-4,CISPR32,EN55032,UL62368,IEC62368 and EN62368.These light weight AC-DCconverters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range(V)* | Efficiency at 230VAC (%) Typ. | Capacitive Load (µF)Max. |
|
UL/EN/IEC |
LI100-20B12PR2 | 90 | 12V/7.5A | 12.0 - 13.8 | 88 | 10000 |
| LI100-20B15PR2 | 97.5 | 15V/6.5A | 13.5 - 18.0 | 89 | 6400 | |
| LI100-20B24PR2 | 100.8 | 24V/4.2A | 21.6 - 29.0 | 90 | 2500 | |
| LI100-20B48PR2 | 100.8 | 48V/2.1A | 43.2 - 55.2 | 90 | 1100 | |
| Note: * The actual adjustment range may extend outside the values stated, care should be exercised to ensure that the output voltage and power levels remain within the published maximum values. | ||||||
| Input Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Input Voltage Range | AC input | 85 | -- | 264 | VAC |
| DC input | 120 | -- | 370 | VDC | |
| Input Frequency | 47 | -- | 63 | Hz | |
|
Input Current |
115VAC | -- | -- | 3 |
A |
| 230VAC | -- | -- | 1.6 | ||
|
Inrush Current |
115VAC | -- | 35 | -- | |
| 230VAC | -- | 70 | -- | ||
| Leakage Current | 240VAC/50Hz | 0.5mA RMS Max. | |||
| Hot Plug | Unavailable | ||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | 0% - 100% load | -- | ±2 | -- |
% |
|
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 230VAC | -- | ±1.5 | -- | ||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) |
12V Output | -- | -- | 120 |
mV |
| 15V Output | -- | -- | 120 | |||
| 24V Output | -- | -- | 150 | |||
| 48V Output | -- | -- | 240 | |||
| Mechanical Specifications | |
| Case Material | Plastic, heat-resistant (UL94V-0) |
| Package Dimensions | 70.00 x 92.66 x 58.00 mm |
| Weight | 235g (Typ.) |
| Cooling method | Free air convection |
