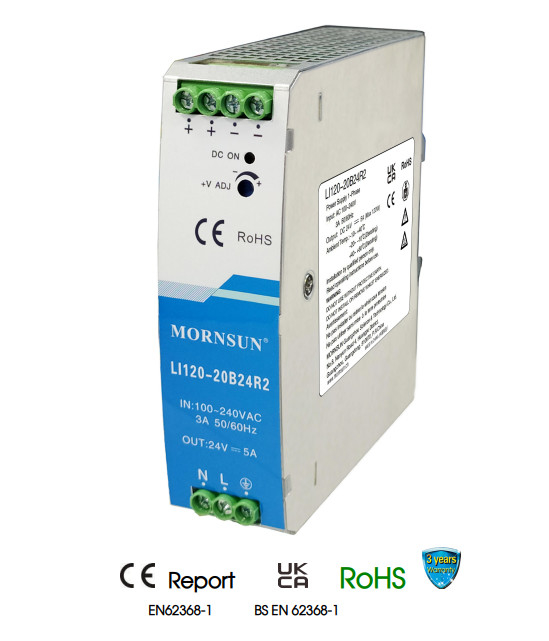

120W AC DC Din Rail Power Supply Industrial Control Power Supply

120W AC DC Din Rail Power Supply Industrial Control Power Supply

  • High Light

    120W AC DC Din Rail Power Supply

    ,

    15V AC DC Din Rail Power Supply

    ,

    Industrial DC DC Converter EMC

  • Product Name
    100W Ac DC Din Rail Power Supply
  • Input Voltage
    85-264VAC
  • Output Voltage
    12/15V/24V/48V
  • Output Frequency
    47-63HZ
  • MTBF
    >300,000 H
  • MateriaL
    Metal (AL1050, SGCC) And Plastic (PC940)
  • Dimensions
    35.00 X 125.00 X 112.70mm
  • Weight
    500g (Typ.)
  • Place of Origin
    China
  • Brand Name
    MORNSUN
  • Certification
    UL/CE/CB
  • Model Number
    LI120-20BxxR2
  • Minimum Order Quantity
    1PCS
  • Price
    Negotiated
  • Packaging Details
    Carton packed
  • Delivery Time
    Negotiated
  • Payment Terms
    T/T

120W AC DC Din Rail Power Supply Industrial Control Power Supply

120W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions
 LI120-20BxxR2 is Mornsun AC-DC converter series featuring a cost-effective,energy efficient green power supply solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise for industrial control equipment,machinery,and other industrial equipment in a variety of harsh environments.These light weight AC-DC converters have an extremely compact design and the standard rail (35mm)installation for space saving.With good EMC performance,compliant with international IEC/EN/UL62368,EN60335,GB4943 standards for EMC and safety.



Features



Universal 90 - 264VAC or 127 - 370VDC Input voltage

Accepts AC or DC input (dual-use of same terminal)

Operating ambient temperature range: -20℃ to +60℃

The efficiency is up to 89%

High I/O isolation test voltage up to 4000VAC

Low ripple & noise

Output short circuit, over-current, over-voltage, over-temperature protection

DIN rail TS-35/7.5 or 15 mountable

Ultra slim design with 35mm width: suitable for small chassis and narrow space installation

EN62368 safety approved, safety according to IEC/EN/UL62368, EN60335, GB4943



Specifications


Selection Guide
Certification Part No. Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)



CE

LI120-20B12R2



120

12V/10A 12-14 85 3000
LI120-20B24R2 24V/5A 24-28 88 1200
LI120-20B48R2 48V/2.5A 48-55 89 800
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit



Input Voltage Range

AC input 90 -- 264 VAC
DC input 127 -- 370 VDC
Input Voltage Frequency   47 -- 63 Hz



Input Current

115VAC -- -- 2.7





A

230VAC -- -- 1.6



Inrush Current

115VAC



Cold start

-- 20 --
230VAC -- 40 --
Hot Plug   Unavailable
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit



Output Voltage Accuracy



Full load range

12V -- ±2.0 --





%

24V/48V -- ±1.0 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise* 20MHz bandwidth 12V -- -- 100 mV
Mechanical Specifications
Case Material Metal (AL1050, SGCC) and Plastic (PC940)
Dimensions 35.00 x 125.00 x 112.70mm
Weight 500g (Typ.)
Cooling Method Free air convection
