150W 48V ac dc Din Rail switching power supply

150W AC DC Din Rail Power Supply Industrial Control Power Supply

Descriptions

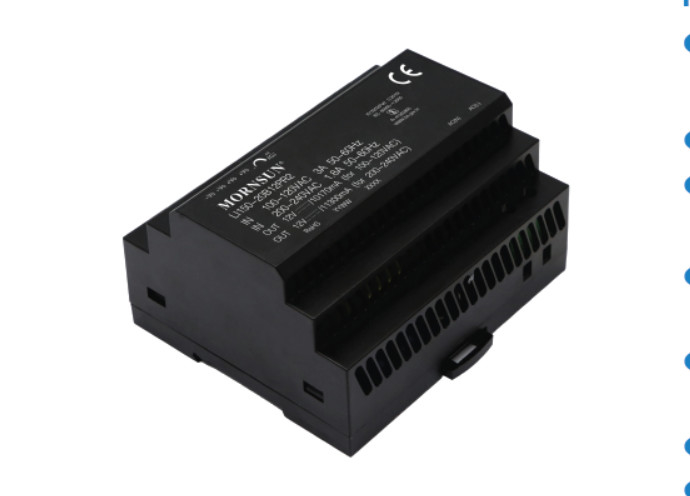

LI150-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products
offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitions meet
IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. These light weight AC-DC converters also have an
extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of
applications in a harsh environment.
Selection Guide

Features

Universal 85-264VAC (277VAC available)
or 120-370VDC (390VDC available) input voltage
 Withstand 300VAC surge input for 5s
 Operating ambient temperature range: -30℃ to +70℃
(can be start-up at -40℃)
 High I/O isolation test voltage up to 4000VAC (Input -
output)
 Over-voltage class III (Designed to meet EN61558
standards)
 Low standby power consumption, low ripple & noise
 High efficiency, high reliability
 Output short circuit, over-current, over-voltage
over-temperature protection
 DIN rail TS35X7.5/ TS35X15 mountable
 Ultra-thin design:width 105mm (6SU)
