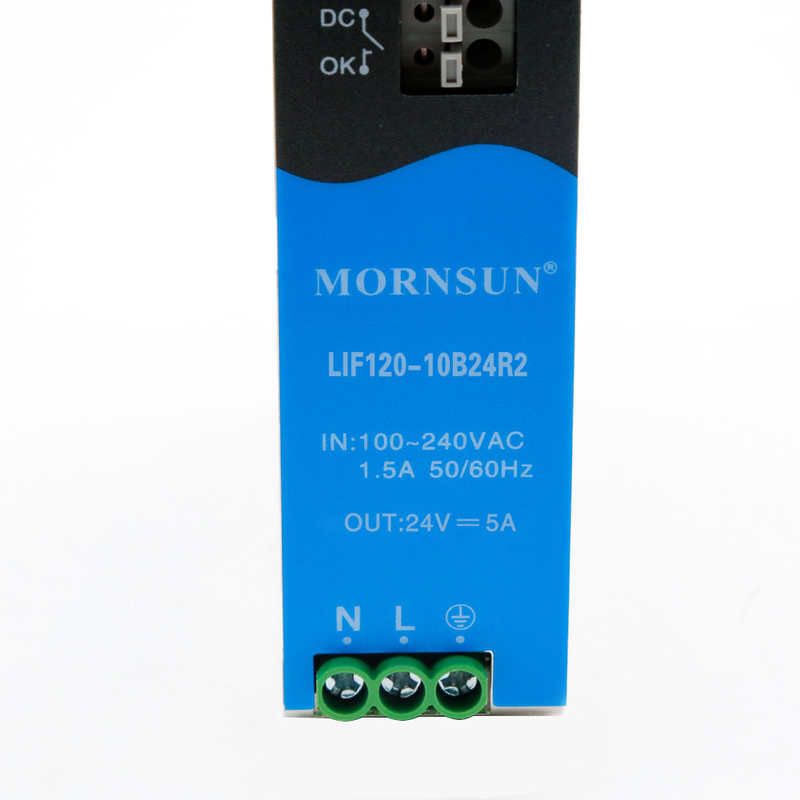

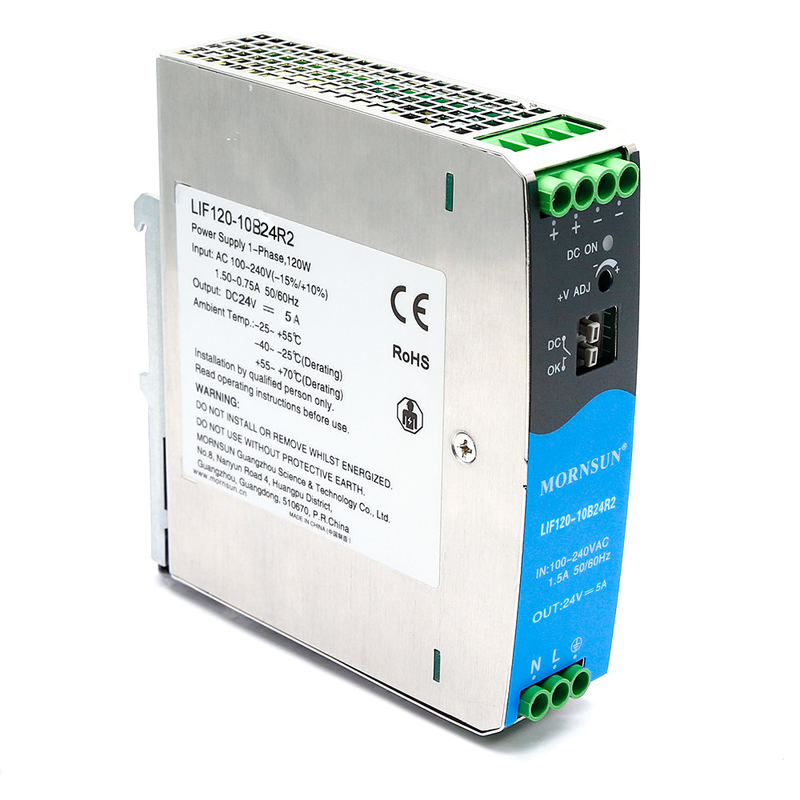

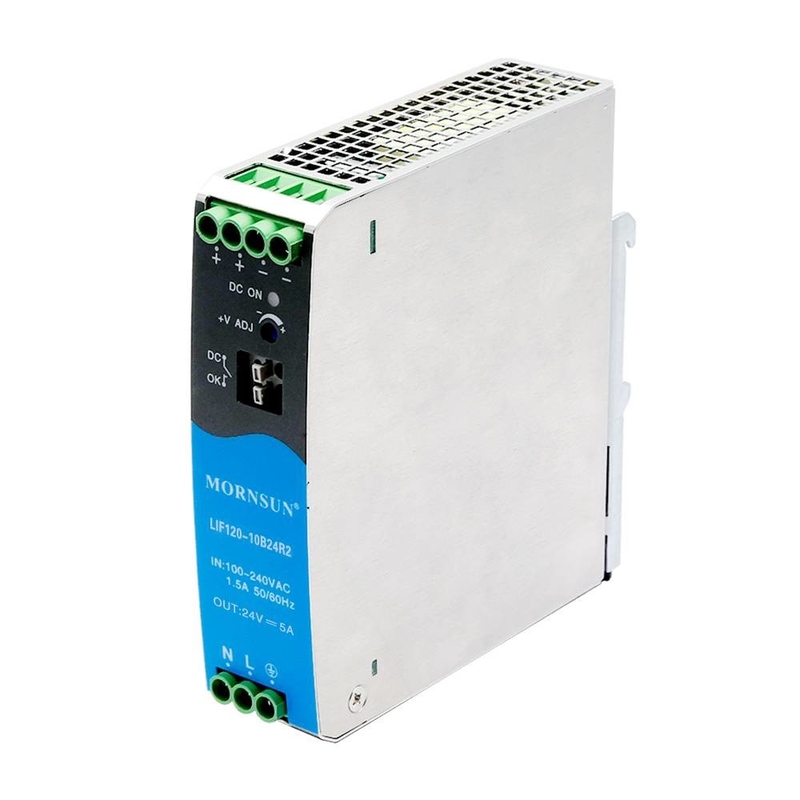

120W Ac DC Din Rail with PFC function Power Supply Industrial Control Power Supply
Descriptions
LIF120-10BxxR2 series is Mornsun AC-DC converter series featuring a cost-effective,energy efficient explosion-proof solution for standard DIN-rail mounting.The products offer a high level of stability and immunity to noise,compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN/UL62368,UL61010.These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment,machinery,and all kinds of applications in a harsh environments.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No. | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range (V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) |
|
UL/EN |
LIF120-10B12R2 |
120 |
12V/10A | 11.8-14.0 | 93.5 | 80,000 |
| LIF120-10B24R2 | 24V/5A | 23.5-28.0 | 94 | 50,000 | ||
| LIF120-10B48R2 | 48V/2.5A | 47.0-53.0 | 94 | 30,000 | ||
| Output Specifications | |||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit |
| Output Voltage Accuracy | Full load range | -- | ±1 | -- |
% |
| Line Regulation | Rated load | -- | ±0.5 | -- | |
| Load Regulation | 0% - 100% load | -- | ±1 | -- | |
|
Ripple & Noise* |
20MHz bandwidth (peak-peak value) | 12V/24V | -- | -- | 100 |
mV |
||
| 48V | -- | -- | 200 | |||||
| Stand-by Power Consumption | -- | 2 | -- | W | ||||
| Hold-up Time | -- | 20 | -- | ms | ||||
| DC OK Signal | Resistive load | 30VDC/1A Max. | ||||||
|
Short Circuit Protection |
|
Constant current hiccup mode (constant current mode works 1s and stop 10s) continuous, self-recovery | ||||||
|
Over-current Protection |
|
Normal temperature, high temperature |
105% - 200% Io, self-recovery | |||||
| Low temperature | ≥105% full load after derating, self-recovery | |||||||
|
Over-voltage Protection |
12V | ≤18V (Hiccup, self-recovery after the abnormality is removed) | ||||||
| 24V | ≤35V (Hiccup, self-recovery after the abnormality is removed) | |||||||
| 48V | ≤60V (Hiccup, self-recovery after the abnormality is removed) | |||||||
|
Over-temperature Protection |
230VAC, |
Over-temperature protection start | -- | 90 | -- |
℃ |
||
| Over-temperature protection release | 60 | -- | -- | |||||
| Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information. | ||||||||
| General Specifications | |
| Case Material | Metal (AL5052, SPCC, SGCC) and Plastic (PA66) |
| Dimensions | 110.00 x 32.00 x 124.00 mm |
| Weight | 490g±10% (Typ.) |
| Cooling Method | Free air convection |
