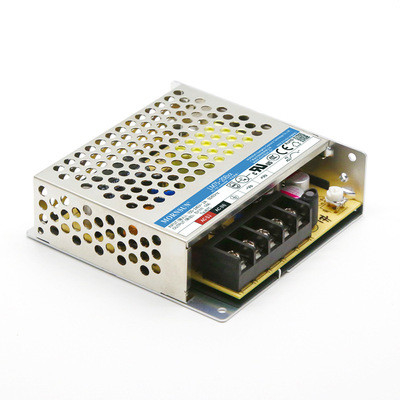

75W Industrial Din Rail Power Supply for IoT system

75W Industrial Din Rail Power Supply for IoT system

  • High Light

    Industrial Din Rail Power Supply 75W

    ,

    120VDC Industrial Din Rail Power Supply

    ,

    Industrial Universal Power Supply IoT

  • Product Name
    75W Enclosed Ac Dc Enclosed Type Power Supply
  • Input Voltage
    85~305VAC
  • Output Voltage
    5V/12V/15V/24V/36V/48
  • Output Frequency
    47-63HZ
  • Efficiency
    ≥86%
  • Output Type
    Single
  • Dimension

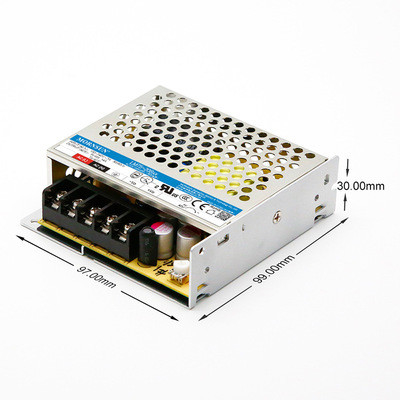

    99.00 X 97.00 X 30.00 Mm
  • Cooling Method
    Free Air Convection
  • Place of Origin
    China
  • Brand Name
    MORNSUN
  • Certification
    UL/CB/CE/CCC
  • Model Number
    LM75-20Bxx
  • Minimum Order Quantity
    1PCS
  • Price
    Negotiated
  • Packaging Details
    Carton packed
  • Delivery Time
    Negotiated
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    500Kpcs/month

75W Industrial Din Rail Power Supply for IoT system



75W Enclosed Ac Dc Enclosed Type Power Supply LED street light control



Descriptions



LM75-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency,high reliability and double or reinforced insulation.These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/UL/EN62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc.



Applications



Widely used in industrial control, LED street light control,smart home, transportation, renewable energy, IoT, power grid, automotive etc.



Features

  • Universal 85 - 264VAC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection

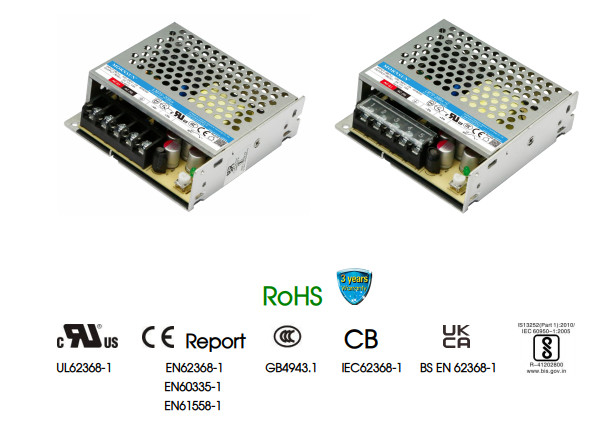

  •  IEC/EN/UL62368, EN60335, GB4943 safety approved
  •  Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m



Specifications

Selection Guide
Certification Part No.* Output Power (W) Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF)







UL/CE/CCC/CB

LM75-20B05 70 5V/14A 4.5-5.5 86 10000
LM75-20B12 72 12V/6A 10.2-13.8 88 6000
LM75-20B15 75 15V/5A 13.5-18 88 5000
LM75-20B24 76.8 24V/3.2A 21.6-28.8 90 1500
LM75-20B36 75.6 36V/2.1A 32.4-39.6 90 1000
LM75-20B48 76.8 48V/1.6A 43.2-52.8 91.5 680
Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating.
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 -- 264 VAC
DC input 120 -- 370 VDC
Input Voltage Frequency   47 -- 63 Hz
Input Current 115VAC -- -- 2





A

230VAC -- -- 1
Inrush Current 115VAC Cold start -- 40 --
230VAC -- 65 --
Leakage Current 240VAC <0.75mA
Hot Plug

Unavailable





Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range 5V -- ±2 --





%

12V/15V/24V/36V/48V -- ±1 --
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load 5V -- ±1 --
12V/15V/24V/36V/48V -- ±0.5 --



Ripple & Noise*



20MHz bandwidth (peak-to-peak value)

5V -- 100 --



mV

12V/15V -- 120 --
24V -- 150 --
    36V -- 200 --
48V -- 200 --
Temperature Coefficient 0℃ to 50℃, 230VAC -- ±0.03 -- %/℃
Minimum Load   0 -- -- %
Stand-by Power Consumption   -- -- 0.3 W



Hold-up Time

115VAC 8 -- --



ms

230VAC 55 -- --
Short Circuit Protection Recovery time <5s after the short circuit disappear. Hiccup, continuous, self-recovery
Over-current Protection   110%-200% Io, self-recovery







Over-voltage Protection

5V ≤6.3VDC (Output voltage clamp)
12V ≤16.2VDC (Hiccup, self-recovery)
15V ≤21.75VDC (Hiccup, self-recovery)
24V ≤33.6VDC (Hiccup, self-recovery)
36V ≤50VDC (Output voltage clamp)
48V ≤60VDC (Output voltage clamp)
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information.
Mechanical Specifications
Case Material Metal(AL1100, SGCC)
Dimensions 99.00 x 97.00 x 30.00 mm
Weight 220g (Typ.)
Cooling Method Free air convection
