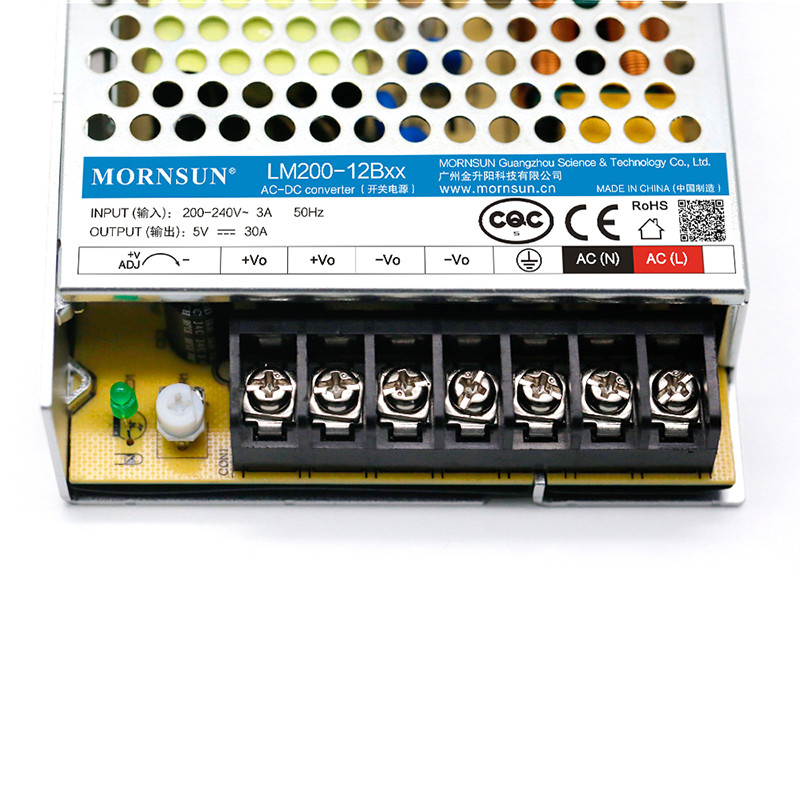

200W Enclosed Ac Dc Power Supply industrial control power supply
Descriptions
LM200-12Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency and high reliability.These power supply offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,UL/EN/IEC62368,EN60335,GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home etc
Features
| Selection Guide | |||||||
|
Certification |
Part No.* |
Output Power(W) |
Nominal Output Voltage and Current (Vo/Io) |
Output Voltage Adjustable Range (V) |
Efficiency at 230VAC (%) Typ. |
Max. Capacitive Load (µF) |
|
| Steady state | transient* | ||||||
|
UL/CE/CB/CQC |
LM200-12B05 | 150 | 200 | 5V/30A | 4.5-5.5 | 87 | 10000 |
| LM200-12B12 | 204 | -- | 12V/17A | 10.2-13.8 | 87.5 | 4000 | |
| LM200-12B15 | 210 | -- | 15V/14A | 13.5-18 | 88 | 3300 | |
| LM200-12B24 | 211.2 | -- | 24V/8.8A | 21.6-28.8 | 88.5 | 1500 | |
| LM200-12B36 | 212.4 | -- | 36V/5.9A | 32.4-39.6 | 89 | 1500 | |
| LM200-12B48 | 211.2 | -- | 48V/4.4A | 43.2-52.8 | 89.5 | 470 | |
| Note: 1.*Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating; 2.*Hold-up time1min (Typ.). | |||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Input Voltage Range (by switch) | AC input | 176 | -- | 264 | VAC | |
| DC input | 240 | -- | 370 | VDC | ||
| Input Voltage Frequency | 47 | -- | 53 | Hz | ||
| Input Current | 230VAC | -- | 2.2 | 3 |
A |
|
| Inrush Current | 230VAC | Cold start | -- | 60 | 80 | |
| Hot Plug | Unavailable | |||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Output Voltage Accuracy |
Full load range |
5V | -- | ±3 | -- |
% |
| 12V | -- | ±1.5 | -- | |||
| 15V/24V/36V/48V | -- | ±1 | -- | |||
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 0% - 100% load | 5V | -- | ±2 | -- | |
| 12V | -- | ±1 | -- | |||
| 15V/24V/36V/48V | -- | ±0.5 | -- | |||
| Output Ripple & Noise* | 20MHz bandwidth (peak-to-peak value) | 5V/12V/15V/24V | -- | 150 | -- | mV |
| 36V/48V | -- | 200 | -- | |||
| Temperature Coefficient | -- | -- | ±0.03 | %/℃ | ||
| Minimum Load | 0 | -- | -- | % | ||
| Stand-by Power Consumption | 230VAC, 25℃ | -- | -- | 0.75 | W | |
| Hold-up Time | 230VAC | 16 | -- | -- | ms | |
| Short Circuit Protection | Recovery time <5s after the short circuit disappear. | Hiccup, continuous, self-recover | ||||
| Over-current Protection | 110% - 185% Io, self-recover | |||||
|
Over-voltage Protection |
5V | ≤8VDC (Output voltage turn off, re-power on for recover) | ||||
| 12V | ≤18VDC (Output voltage turn off, re-power on for recover) | |||||
| 15V | ≤22VDC (Output voltage turn off, re-power on for recover) | |||||
| 24V | ≤33.6VDC (Output voltage turn off, re-power on for recover) | |||||
| 36V | ≤46.8VDC (Output voltage turn off, re-power on for recover) | |||||
| 48V | ≤60VDC (Output voltage turn off, re-power on for recover) | |||||
| Over-temperature Protection | Output voltage turn off, re-power on for recover | |||||
|
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information. |
||||||
| 15V/24V/36V/48V | -- | ±0.5 | -- | |||
| Output Ripple & Noise* | 20MHz bandwidth (peak-to-peak value) | 5V/12V/15V/24V | -- | 150 | -- | mV |
| 36V/48V | -- | 200 | -- | |||
| Temperature Coefficient | -- | -- | ±0.03 | %/℃ | ||
| Minimum Load | 0 | -- | -- | % | ||
| Stand-by Power Consumption | 230VAC, 25℃ | -- | -- | 0.75 | W | |
| Hold-up Time | 230VAC | 16 | -- | -- | ms | |
| Short Circuit Protection | Recovery time <5s after the short circuit disappear. | Hiccup, continuous, self-recover | ||||
| Over-current Protection | 110% - 185% Io, self-recover | |||||
|
Over-voltage Protection |
5V | ≤8VDC (Output voltage turn off, re-power on for recover) | ||||
| 12V | ≤18VDC (Output voltage turn off, re-power on for recover) | |||||
| 15V | ≤22VDC (Output voltage turn off, re-power on for recover) | |||||
| 24V | ≤33.6VDC (Output voltage turn off, re-power on for recover) | |||||
| 36V | ≤46.8VDC (Output voltage turn off, re-power on for recover) | |||||
| 48V | ≤60VDC (Output voltage turn off, re-power on for recover) | |||||
| Over-temperature Protection | Output voltage turn off, re-power on for recover | |||||
|
Note: *The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information. |
||||||
| Mechanical Specifications | |
| Case Material | Metal (AL1100, SGCC) |

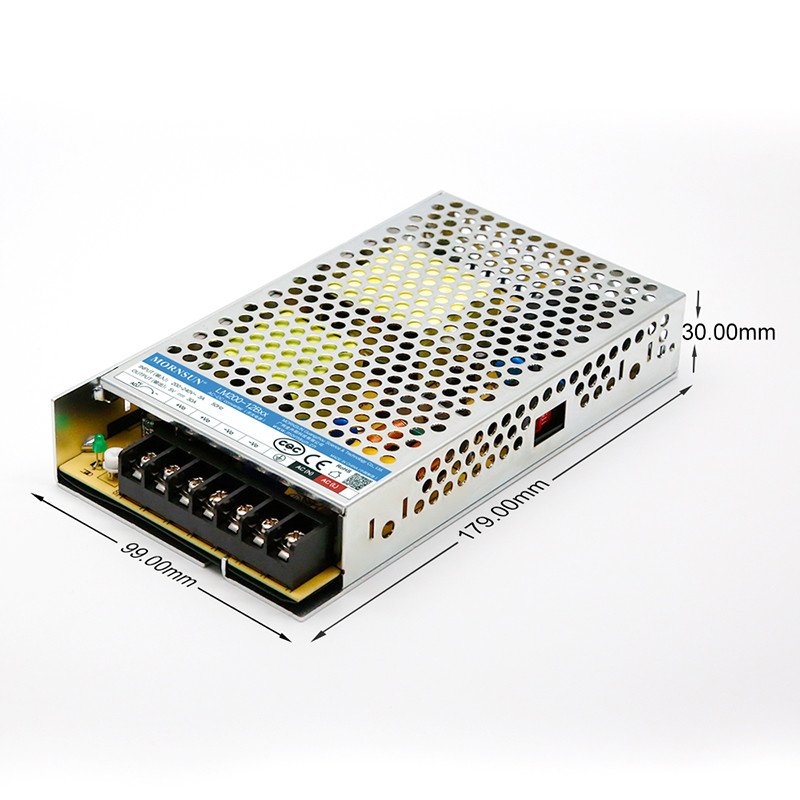

| Dimensions | 179.00 x 99.00 x 30.00 mm |
| Weight | 520g (Typ.) |
| Cooling Method | Free air convection |
