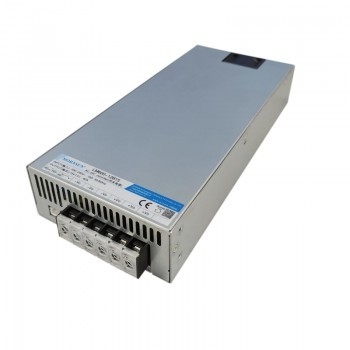

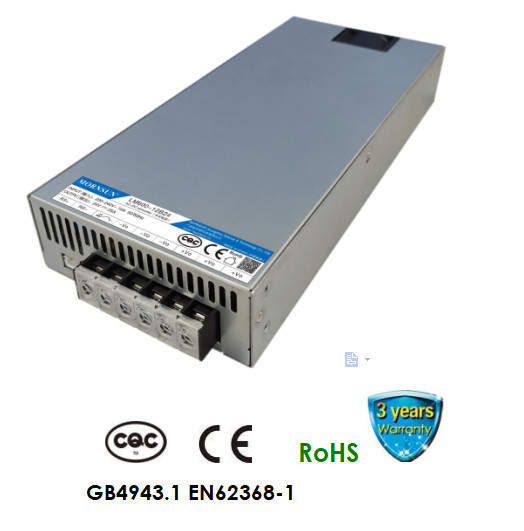

600W Ac Dc Power Supply enclosed type power supply
Descriptions
LM600-12Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features AC input and at the same time accepts DC input voltage,cost-effective,low no load power consumption,high efficiency and high reliability.
These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial,LED,street light control,electricity,security,telecommunications,smart home,etc.
Features
| Selection Guide | ||||||
| Certification | Part No.* | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range (V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) |
|
EN/CQC |
LM600-12B12 | 600 | 12V/50A | 10-13.5 | 85 | 3000 |
| LM600-12B15 | 600 | 15V/40A | 13.5-16.5 | 86 | 3000 | |
| LM600-12B24 | 600 | 24V/25A | 22-26.4 | 87 | 1000 | |
| LM600-12B27 | 599.4 | 27V/22.2A | 24-30 | 87 | 1000 | |
| LM600-12B36 | 597.6 | 36V/16.6A | 32-40 | 87 | 1000 | |
| LM600-12B48 | 600 | 48V/12.5A | 43-56 | 88 | 1000 | |
| Note: *Use suffix “Q” for conformal coating. | ||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Voltage Range |
AC input | 176 | -- | 264 | VAC | |
| DC input | 240 | -- | 370 | VDC | ||
| Input Voltage Frequency | 47 | -- | 63 | Hz | ||
| Input Current | 230VAC | -- | 7.5 | 10 |
A |
|
| Inrush Current | 230VAC | Cold start | -- | 60 | -- | |
| Leakage Current | 240VAC | -- | -- | 2 | mA | |
| Hot Plug | Unavailable | |||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | Full load range | -- | ±1 | -- |
% |
|
| Line Regulation | Rated load |
-- |
±0.5 |
-- |
||
| Load Regulation | 0% - 100% load | |||||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) | 12V/15V/24V/27V | -- | 150 | -- |
mV |
| 36V/48V | -- | 200 | -- | |||
| Temperature Coefficient | -- | ±0.05 | -- | %/℃ | ||
| Minimum Load | 0 | -- | -- | % | ||
| Hold-up Time | 230VAC | -- | 20 | -- | ms | |
| Short Circuit Protection | Recover time <3s after the short circuit disappear. | Hiccup, continuous, self-recover | ||||
| Over-current Protection | 105%-180% Io, self-recover | |||||
|
Over-voltage Protection |
12V | ≤16.2V (Hiccup, self-recover) | ||||
| 15V | ≤21V (Hiccup, self-recover) | |||||
| 24V | ≤32.4V (Hiccup, self-recover) | |||||
| 27V | ≤36.5V (Hiccup, self-recover) | |||||
| 36V | ≤50V (Hiccup, self-recover) | |||||
| 48V | ≤60V (Hiccup, self-recover) | |||||
| Over Temperature Protection* | Over-temperature Protection Activation | -- | -- | 70 |
℃ |
|
| Over-temperature Protection Deactivation | 40 | -- | -- | |||
| Remote Sense | Total compensate voltage (RS+/RS- shorted to Vo+/V0- respectively) | -- | 0.5 | -- | V | |
|
Note: 1.*The “Tip and barrel method” is used for ripple and noise test, output parallel 47µF electrolytic capacitor and 0.1µF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information; 2.*Over-temperature Protection needs to be tested under rated full load conditions. |
||||||
| Mechanical Specifications | |
| Case Material | Metal (SGCC) |
| Dimensions | 267.30 x 106.00 x 40.00 mm |
| Weight | 1100g (Typ.) |
| Cooling Method | Forced air cooling |
Dimensions and Recommended Layout
