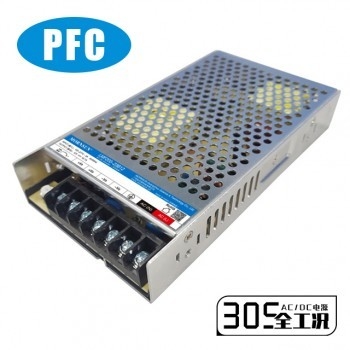

200W AC DC Power Supply with PFC function enclosed type power supply
Descriptions
LMF200-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply.It features universal AC input and at the same time accepts DC input voltage,cost-effective,built-inactive PFC function,high efficiency and high reliability.These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032,IEC/EN/UL62368,EN60335,GB4943 standards.
Features
Specifications
| Selection Guide | ||||||
| Certification | Part No.* | Output Power (W) | Nominal Output Voltage and Current (Vo/Io) | Output Voltage Adjustable Range (V) | Efficiency at 230VAC (%) Typ. | Max. Capacitive Load (µF) |
|
UL/EN/CCC |
LMF200-23B12 | 200.4 | 12V/16.7A | 11.4-12.6 | 88.0 | 4000 |
| LMF200-23B15 | 201.0 | 15V/13.4A | 14.25-15.75 | 88.0 | 3300 | |
| LMF200-23B24 |
201.6 |
24V/8.4A | 22.8-25.2 | 90.0 | 1500 | |
| -- | LMF200-23B36 | 36V/5.6A | 34.2-37.8 | 89.0 | 1000 | |
| UL/EN/CCC | LMF200-23B48 | 48V/4.2A | 45.6-50.4 | 89.0 | 470 | |
| Note: *Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating. | ||||||
| Input Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
|
Input Voltage Range |
AC input | 85 | -- | 305 | VAC | |
| DC input | 120 | -- | 430 | VDC | ||
| Input Voltage Frequency | 47 | -- | 63 | Hz | ||
|
Input Current |
115VAC | -- | 2.5 | 3.0 |
A |
|
| 230VAC | -- | 1.3 | 2.0 | |||
|
Input Inrush Current |
115VAC |
Cold start |
-- | 35 | -- | |
| 230VAC | -- | 65 | -- | |||
|
Power Factor |
115VAC |
At full load |
-- | 0.98 | -- |
-- |
| 230VAC | -- | 0.95 | -- | |||
| Hot Plug | Unavailable | |||||
| Output Specifications | ||||||
| Item | Operating Conditions | Min. | Typ. | Max. | Unit | |
| Output Voltage Accuracy | Full load range | -- | ±1 | -- |
% |
|
| Line Regulation | Rated load | -- | ±0.5 | -- | ||
| Load Regulation | 230VAC, 0% - 100% load | -- | ±0.5 | -- | ||
|
Output Ripple & Noise* |
20MHz bandwidth (peak-to-peak value) | 12V/15V/24V | -- | 150 | -- |
mV |
| 36V/48V | -- | 240 | -- | |||
| Stand-by Power Consumption | Normal temperature, 230VAC | -- | 0.75 | 1.0 | W |
| Temperature Coefficient | 0℃ to 45℃ | -- | ±0.03 | -- | %/℃ |
| Minimum Load | 0 | -- | -- | % | |
| Hold-up Time | Normal temperature, full Load | -- | 8 | -- | ms |
| Short Circuit Protection | recover time <5s after the short circuit disappear. | Hiccup , continuous, self-recover | |||
| Over-current Protection* | 105%-200% Io, self-recover | ||||
|
Over-voltage Protection |
12V | ≤16.2V (Output voltage turn off, re-power on for recover) | |||
| 15V | ≤21.8V (Output voltage turn off, re-power on for recover) | ||||
| 24V | ≤32.4V (Output voltage turn off, re-power on for recover) | ||||
| 36V | ≤46.0V (Output voltage turn off, re-power on for recover) | ||||
| 48V | ≤60.0V (Output voltage turn off, re-power on for recover) | ||||
|
Over-temperature Protection* |
Over-temperature protection activation | -- | -- | 85 |
℃ |
| Over-temperature protection deactivation | 55 | -- | -- | ||
|
Note: 1.*The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, please refer to Enclosed Switching Power Supply Application Notes for specific information. 2.*Over-current Protection: Test at rated output voltage, lo is rated output current load. 3.*Over-temperature Protection needs to be tested under rated full load conditions. |
|||||
| Mechanical Specifications | |
| Case Material | Metal (AL1100) |
| Dimensions | 179.00 x 99.00 x 30.00 mm |
| Weight | 475.0g (Typ.) |
| Cooling Method | Free air convection |
