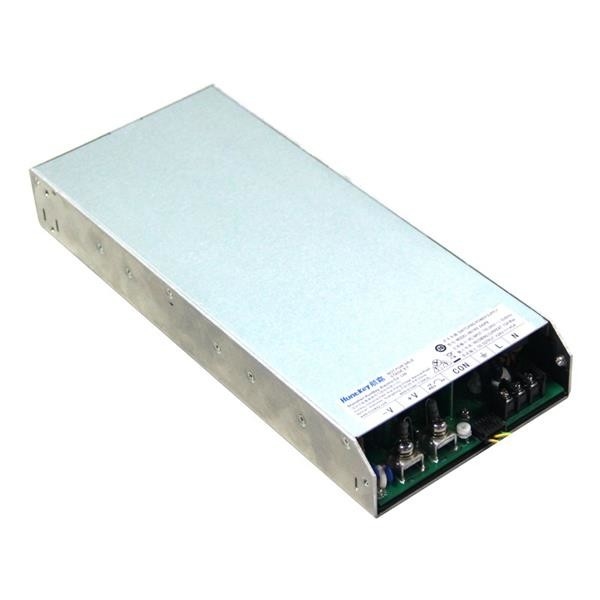

1000W single output 12V/24V Industrial Power Supply

● 90-264VAC or 102-370VDC Input
● 30mm ultra-thin height
● overvoltage, overcurrent, over temperature, undervoltage, short circuit protection
● high efficiency, low ripple
● operating temperature -30～+70℃
● highly capacitive load design, Stronger instantaneous load capacity
● high reliability, 100% full load burn-in test
● Optional Current-sharing function
● one year renewal, three-year warranty

Model		HKI1000-120PB	HKI1000-240PB
Output	direct voltage/current	12V/60A	24V/40A
	voltage range	9.6~14.4V	19.2~28.8V
	current range	0~60A	0~40A
	stabilized voltage precision	±2%	±2%
	ripple	＜100mVp-p	＜150mVp-p
Input	least efficiency	86%	86%
	voltage range	90～264VAC；102~370VDC
	surge current	Cold-boot＜40A/230VAC
Protection	overvoltage	115%-135%(rated voltage),re-power after fault removed	115%-135%(rated voltage),Auto restart after fault removed
	overcurrent	120%-180%(rated current),re-power after fault removed
	over temperature	OTP point to ensure that all components do not exceed the specified temperature,re-power after fault removed
	undervoltage	AC input undervoltage protection point: <=60Vac, undervoltage protection recovery point: >=70Vac
	short circuit	When the output terminal is short-circuited, the power supply cannot be damaged, cannot catch fire, and can automatically recover after the short-circuit is eliminated
Environment	operating temperature	-30～+70℃,20～90﹪RH,no condensation(please refer to derating curve)
	reserving temperature	-40～+85℃,10～95﹪RH,no condensation
	vibration	10～500HZ,5G 10 min/cycle,60 min/X,Y,Z directions
Safety	safety standard	GB4943 EN62368
	electromagnetic compatibility standard	EN55032 Class B, GB9254 Class B,EN61000-4-2,3,4,5,6,8,11 , EN61000-3-2,3
	Withstand voltage	I/P-O/P:3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
Other	dimensions	295*127*40.5mm
	package	10pcs/17kg
