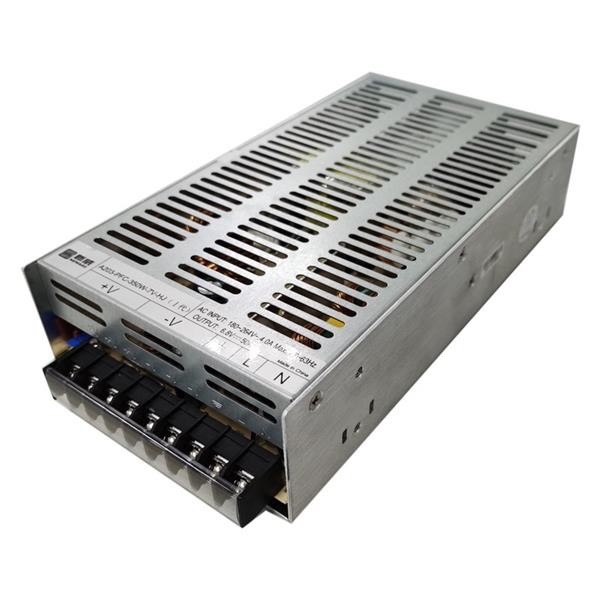

| Model | HKI350-140PB | |
| Output | direct voltage/current | 13V-27A |
| voltage range | 12~14V | |
| current range | 0~27A | |
| stabilized voltage precision | ±3% | |
| ripple | ＜50mVp-p | |
| Input | least efficiency | 86% |
| voltage range | 180-264VAC | |
| surge current | Cold-boot＜80A/230VAC | |
| Protection | overvoltage | 16V-18.2V |
| overcurrent | 35-50A | |
| short circuit | When the output terminal is short-circuited, the power supply cannot be damaged, cannot catch fire, and can automatically recover after the short-circuit is eliminated | |
| Environment | operating temperature | -25～+50℃,5～85﹪RH,no condensation(please refer to derating curve) |
| reserving temperature | -35～+75℃,5～95﹪RH,no condensation | |
| Safety | vibration | 10～500HZ,5G 10 min/cycle,60 min/X,Y,Z directions |
| safety standard | GB4943,IEC62368-1 approved | |
| electromagnetic compatibility standard | EN55022 Class A, GB9254 Class A,EN61000-4-2,3,4,5,6,8,11 , EN61000-3-2,3 | |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC | |
| Other | dimensions | 215*115*50mm |
| package | 12pcs/14kg | |
